Radon SWOOP AL 10.0 2020

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,5 kg
Front travel
170mm
Rear travel
170mm

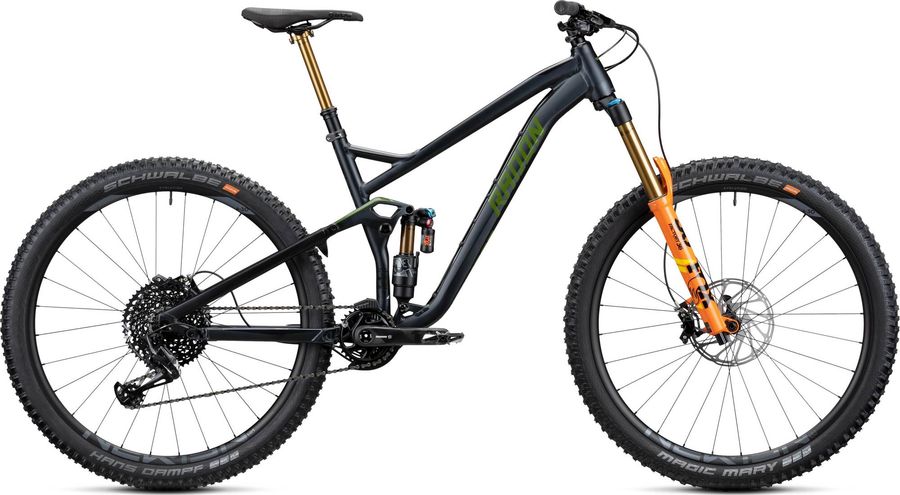

Radon SWOOP AL 10.0 2020

About the Radon SWOOP AL 10.0 2020

The Radon SWOOP AL 10.0 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,5 kg.

Features

The Radon SWOOP AL 10.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
SDG Slater
Pedals
not included
Components
Steam
Race Face Turbine R, 35 x 40mm
Saddle
SDG Radar, CroMo
Headset
FSA, ZS44/ZS56
Seatpost
Fox Transfer Factory, Kashima, 31.6 x 150mm
Handlebar
Race Face Turbine, 35 x 800mm, 35mm rise
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X1 Eagle Carbon, DUB, 32T, Boost, 170mm
Shifter
SRAM GX Eagle, Matchmaker X
Chain guide
e*thirteen TRS+, ISCG05
Bottom bracket
SRAM DUB, BSA, 73mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
SWOOP AL; Material: Aluminium, Max. width tire: 2.4", Hanger: #10240
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
Newmen Evolution SL A.30, 30mm, 110/148mm
Tires
Schwalbe Magic Mary, Addix-Soft, TLE, Super Gravity, 29" x 2.35"
Spokes
Newmen Evolution SL A.30 wheelset
Rear hub
Newmen Evolution SL A.30 wheelset, 110x15mm Boost front, 148x12mm Boost rear
Front hub
Newmen Evolution SL A.30 wheelset, 110x15mm Boost front, 148x12mm Boost rear

Geometry

Size 17" High 19" High 21" High
a
Seat tube length
435,0
455,0
475,0
b
Seat tube angle
76,8º
76,8º
76,8º
c
Top tube length
602,0
620,0
638,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
65,8º
65,8º
65,8º
f
Rake
54,0
54,0
54,0
g
Trail
109,0
109,0
109,0
h
Wheelbase
1238,0
1256,0
1275,0
i
Chainstay length
446,0
446,0
446,0
j
Bottom bracket drop
32,0
32,0
32,0
k
Stack height
639,0
648,0
657,0
l
Reach
463,0
477,0
492,0
m
Standover height
736,0
754,0
767,0
x
Bottom bracket height
342,0
342,0
342,0
y
Front center
794,0
812,0
831,0
