Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,6 kg
Front travel
170mm
Rear travel
170mm

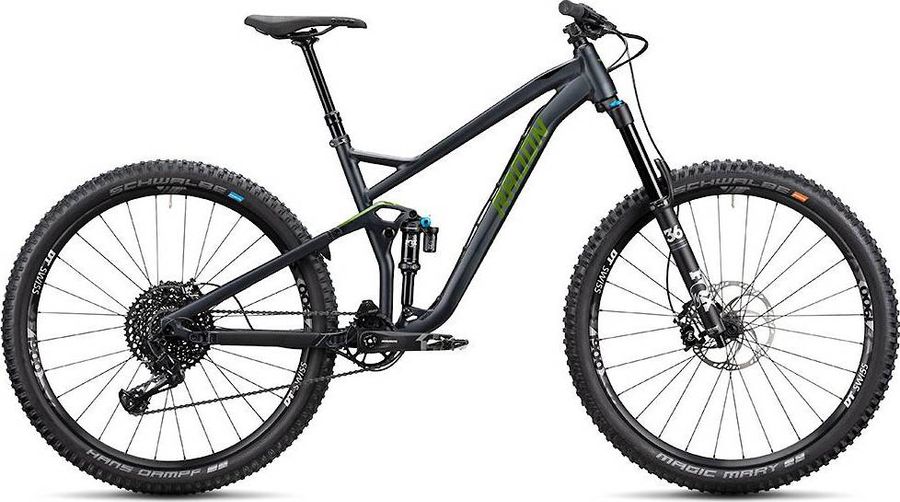

About the Radon Swoop AL 8.0 2020
The Radon Swoop AL 8.0 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,6 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
SDG Slater
|
|---|
|
Steam
|
Race Face Aeffect R, 35mm clamp, 40mm length
|
|---|---|
|
Saddle
|
SDG Radar
|
|
Headset
|
FSA, ZS44/ZS56
|
|
Seatpost
|
Radon Competition Dropper, 150mm drop
|
|
Handlebar
|
Race Face Aeffect R, 35mm bore, 780mm width, 20mm rise
|
|
Brake lever
|
Magura MT5
|
|
Brakes
|
Magura MT5
|
|
Crankset
|
SRAM X1 1000 Eagle DUB, 170mm length
|
|---|---|
|
Shifter
|
SRAM NX Eagle, 12-speed, Shiftmix
|
|
Chain guide
|
MRP 1x upper guide and bashguard
|
|
Bottom bracket
|
SRAM DUB, BSA, 73mm
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Chain
|
SRAM SX Eagle
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Performance
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
DT Swiss E1900 Spline 29, 30mm internal width
|
|---|---|
|
Tires
|
Front: Schwalbe Magic Mary, Addix Soft, TLE, Kevlar, 29" x 2.35", Rear: Schwalbe Hans Dampf, Addix Speedgrip, TLE, Kevlar, 29" x 2.35"
|
|
Spokes
|
DT Swiss E1900 Spline wheelset
|
|
Rear hub
|
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
|
|
Front hub
|
DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear
|
Geometry
| Size | 17" High | 19" High | 21" High |
|---|---|---|---|
|
a
Seat tube length
|
435,0
|
455,0
|
475,0
|
|
b
Seat tube angle
|
76,8º
|
76,8º
|
76,8º
|
|
c
Top tube length
|
602,0
|
620,0
|
638,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
65,8º
|
65,8º
|
65,8º
|
|
f
Rake
|
54,0
|
54,0
|
54,0
|
|
g
Trail
|
109,0
|
109,0
|
109,0
|
|
h
Wheelbase
|
1238,0
|
1256,0
|
1275,0
|
|
i
Chainstay length
|
446,0
|
446,0
|
446,0
|
|
j
Bottom bracket drop
|
32,0
|
32,0
|
32,0
|
|
k
Stack height
|
639,0
|
648,0
|
657,0
|
|
l
Reach
|
463,0
|
477,0
|
492,0
|
|
m
Standover height
|
736,0
|
754,0
|
767,0
|
|
x
Bottom bracket height
|
342,0
|
342,0
|
342,0
|
|
y
Front center
|
794,0
|
812,0
|
831,0
|
