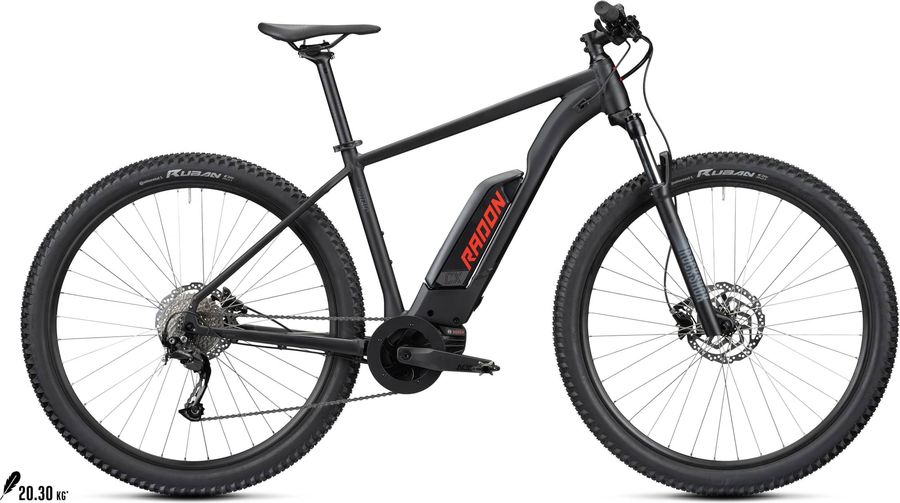

Radon ZR TEAM HYBRID 6.0 500 2022

E-Bike

MTB Cross Country

Groupset

Shimano Alivio

Wheel size

29"

Suspension type

Hardtail

Weight

20,3 kg

Front travel

100mm

About the Radon ZR TEAM HYBRID 6.0 500 2022

The Radon ZR TEAM HYBRID 6.0 500 2022 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Alivio drivetrain of 9 gears (1x9). Its features include boost 148 e hydraulic disc brakes. The bike weighs approximately 20,3 kg.

Features

The Radon ZR TEAM HYBRID 6.0 500 2022 has 2 features listed below.

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	RADON performance grips
Pedals	not included
Remote	Bosch Purion

Components
Steam	LEVELNINE Race, 31.8mm; 15"/45mm, 17"/60mm, 19"/75mm, 21"/90mm, 23"/90mm
Saddle	Natural Fit Venec Lite
Battery	Bosch Powerpack 500Wh
Charger	Bosch Compact Charger 2A
Headset	VP, IS41/IS52
Seatpost	LEVELNINE Race, 30.9 x 350mm
Handlebar	LEVELNINE Race, 31.8 x 720mm, 15mm rise
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	Acid E-Crank, 175mm, KMC chainring, 38T, Herrmans chainguard
Motor	Bosch Performance Line CX Gen4
Shifter	Shimano Alivio SL-M3100-R
Cassette	Shimano Altus CS-HG201-9 HG
Combination names 11-32T 11-34T 11-36T Compatible chain HG 9-speed Lock ring finish Phosphate coated Lock ring material Steel Model CS-HG201-9 Steel gear finish Ni-Ni plated (Top gear: Phosphate coated) Steel gear pieces 9 Type HG
Chain	KMC X9
Rear derailleur	Shimano Alivio RD-M3100 SGS 9s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain CN-HG53 9-speed Lower pulley max 36T Lower pulley min 32T Model RD-M3100-SGS P axle finish Zinc plated P axle material Steel pulley.screws_material Steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage SGS Speeds 9 Upper pulley max 12T Upper pulley min 11T Total capacity 45T

Frameset
Frame	ZR TEAM HYBRID
Front suspension	RockShox Judy TK

Wheels
Rims	Alexrims SD20
Tires	Continental Ruban, PureGrip Compound, E25, wired, 29" x 2.30"
Spokes	DT Swiss Factory
Rear hub	Shimano Altus FH-MT400-B Disc, 148mm
Front hub	Shimano Tourney HB-TX505 Disc, 100mm
