Radon ZR TEAM HYBRID 8.0 CX 500 2020

E-Bike

MTB Cross Country

Groupset

SRAM SX Eagle

Wheel size

29"

Suspension type

Hardtail

Weight

20,8 kg

Front travel

100mm

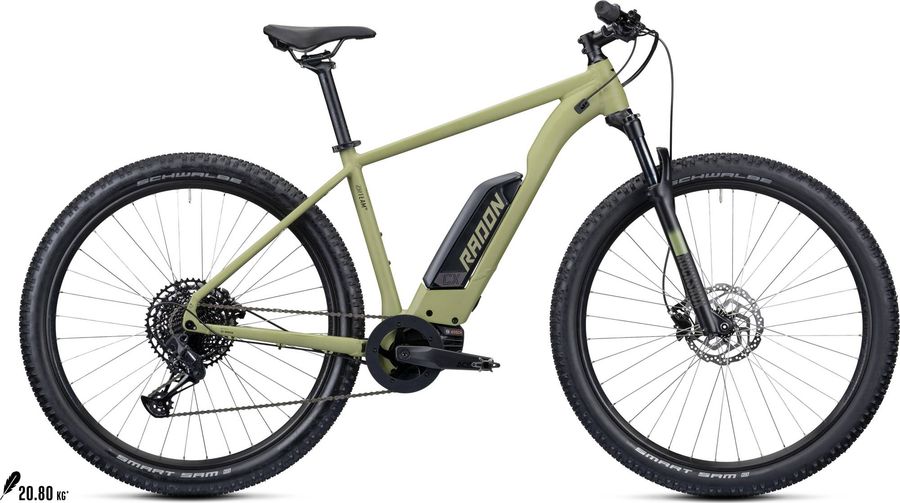

About the Radon ZR TEAM HYBRID 8.0 CX 500 2020

The Radon ZR TEAM HYBRID 8.0 CX 500 2020 is a Hardtail Cross Country Mountain Bike. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 20,8 kg.

Features

The Radon ZR TEAM HYBRID 8.0 CX 500 2020 has 3 features listed below.

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	RADON performance grips
Pedals	not included
Remote	Bosch Purion

Components
Steam	LEVELNINE Race, 31.8mm; 15"/45mm, 17"/60mm, 19"/75mm, 21"/90mm, 23"/90mm
Saddle	Natural Fit Sequence Comfort
Battery	Bosch Powerpack 500Wh
Headset	ZS44/ZS56
Seatpost	LEVELNINE Race, 30.9 x 350mm
Handlebar	LEVELNINE Race, 31.8 x 720mm, 15mm rise
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	Acid E-Crank, KMC chainring, 38T, 175mm
Motor	Bosch Performance Line CX Gen4
Shifter	SRAM SX Eagle, single click
Chain	SRAM SX Eagle
Cassette	SRAM PG-1210 Eagle 12s
Cog finish cassete Black Cog sizes 11-50t:11,13,15,17,19,22,25,28,32,36,42,50 Gearing 11-50t Model CS-PG-1210-A1 Name PG-1210 Eagle™ Cassette Speed 12s Technology cassete PG
Rear derailleur	SRAM SX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Steel Color Black Max tooth 50 Model RD-SX-1-A1 Name SX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s

Frameset
Frame	ZR TEAM HYBRID
Front suspension	RockShox Judy Silver TK Solo Air
Color Diffusion Black, Gloss Black Damper type TurnKey fork offset 42mm (27.5"), 51mm (27.5"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-JDYS-TK-A2 Name Judy Silver TK Spring Solo Air Travel (mm) 100mm, 120mm, 130mm, 80mm Upper tube type 30mm straight wall steel Wheel size 27.5", 29"

Wheels
Rims	Alex MD30
Tires	Schwalbe Smart Sam, ActiveL, wired, 29" x 2.6"
Spokes	DT Swiss Factory
Rear hub	Shimano Altus FH-MT400-B Disc, 148mm
Front hub	Shimano Altus HB-MT400-B Disc, 110mm
