Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

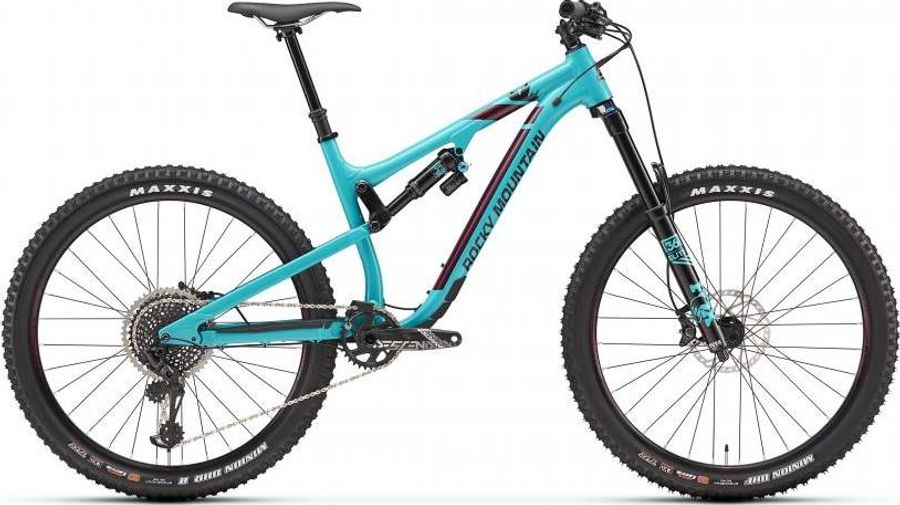

About the Rocky Mountain Altitude Alloy 70 SRAM 2018
The Rocky Mountain Altitude Alloy 70 SRAM 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 148.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
Grip
|
Rocky Mountain Lock On XC
|
---|
Steam
|
Rocky Mountain 35 AM
|
---|---|
Saddle
|
WTB Silverado Race
|
Headset
|
FSA Orbit NO.57E
|
Seatpost
|
Fox Transfer Performance Elite 30.9mm
|
Handlebar
|
Race Face Turbine R 780mm
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
Crankset
|
SRAM Stylo 7k Eagle 34T
|
---|---|
Shifter
|
SRAM GX Eagle
|
Bottom bracket
|
SRAM GXP BB92
|
Front derailleur
|
Rocky Mountain Spirit Guide
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
Frame
|
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate
|
---|---|
Front suspension
|
Fox 36 Float Performance Elite
|
Rear suspension
|
Fox DPX2 Performance Elite
|
Rims
|
Sun Düroc 30 Tubeless Ready - Tape | Valves Incl
|
---|---|
Tires
|
Maxxis Minion DHF WT 27.5 x 2.5 / Minion DHR II WT Maxx Terra 3C Tubeless Ready 27.5 x 2.4
|
Spokes
|
WTB 1.8-1.6
|
Rear hub
|
DT Swiss 370 Boost 148mm
|
Front hub
|
Rocky Mountain Sealed Boost 15mm
|
Geometry
Size | XS | SM | MD | LG | XL |
---|---|---|---|---|---|
a
Seat tube length
|
368,0
|
394,0
|
432,0
|
470,0
|
508,0
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,1º
|
c
Top tube length
|
550,0
|
580,0
|
605,0
|
630,0
|
660,0
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
145,0
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,1º
|
f
Rake
|
45,0
|
45,0
|
45,0
|
44,0
|
45,0
|
g
Trail
|
116,0
|
116,0
|
116,0
|
117,0
|
115,0
|
h
Wheelbase
|
1124,0
|
1155,0
|
1182,0
|
1208,0
|
1241,0
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
428,0
|
j
Bottom bracket drop
|
13,0
|
14,0
|
14,0
|
14,0
|
14,0
|
k
Stack height
|
588,0
|
597,0
|
606,0
|
616,0
|
630,0
|
l
Reach
|
381,0
|
409,0
|
432,0
|
454,0
|
481,0
|
m
Standover height
|
816,0
|
816,0
|
816,0
|
816,0
|
816,0
|
x
Bottom bracket height
|
342,0
|
341,0
|
341,0
|
341,0
|
341,0
|
y
Front center
|
696,0
|
727,0
|
754,0
|
780,0
|
813,0
|
