Rocky Mountain Element Carbon 70 XCO 2018

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

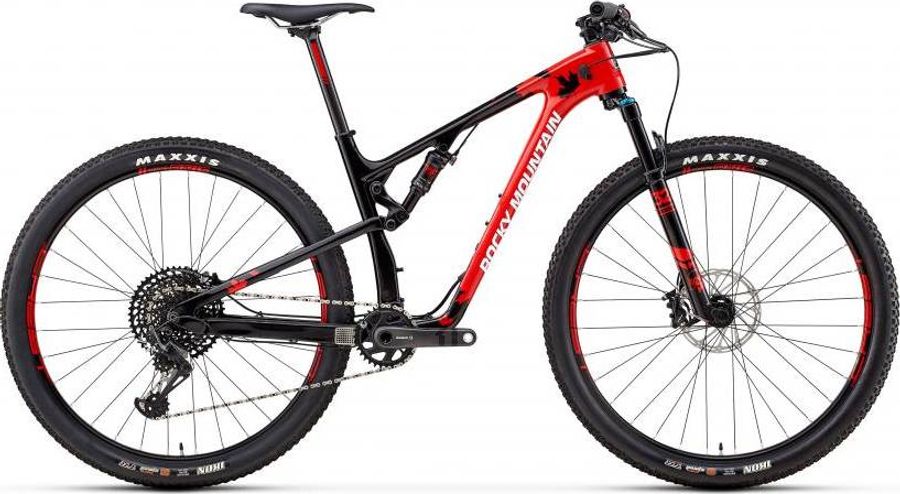

Rocky Mountain Element Carbon 70 XCO 2018

About the Rocky Mountain Element Carbon 70 XCO 2018

The Rocky Mountain Element Carbon 70 XCO 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 148, and hydraulic disc brakes.

Features

The Rocky Mountain Element Carbon 70 XCO 2018 has 4 features listed below.
cabeamento-interno
Internal routing More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On XC
Components
Steam
Rocky Mountain 35 AM
Saddle
WTB Silverado Race
Headset
FSA Orbit NO.57E Extend-o-matic
Seatpost
Rocky Mountain Carbon SL 30.9mm
Handlebar
Race Face Turbine 760mm
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM X1 Carbon Eagle 32T
Shifter
SRAM GX Eagle
Bottom bracket
SRAM GXP BB92
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
SMOOTHWALL™ Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-9™ Adjustable Geometry + Suspension Rate. SMOOTHWALL™ Rear Triangle
Front suspension
Fox 32 Performance SC
Rear suspension
Fox Float DPS Performance Elite
Wheels
Rims
Stans Crest MK3 - Tubeless Ready - Tape | Valves Incl
Tires
Maxxis Ikon Maxx Speed 3C Tubeless Ready 29 x 2.2 / Maxxis Ikon Maxx Speed 3C Tubeless Ready 29 x 2.2
Spokes
WTB 1.8-1.6
Rear hub
DT Swiss 370 Boost 148mm
Front hub
Rocky Mountain Sealed Boost 15mm

Geometry

Size SM MD LG XL XXL
a
Seat tube length
394,0
432,0
470,0
508,0
546,0
b
Seat tube angle
74,8º
74,8º
74,8º
74,8º
74,8º
c
Top tube length
560,0
585,0
610,0
640,0
660,0
d
Head tube length
93,0
103,0
118,0
128,0
143,0
e
Head tube angle
69,3º
69,3º
69,3º
69,3º
69,3º
f
Rake
53,0
53,0
53,0
54,0
53,0
g
Trail
85,0
85,0
85,0
84,0
85,0
h
Wheelbase
1098,0
1124,0
1151,0
1182,0
1203,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
49,0
49,0
49,0
49,0
49,0
k
Stack height
595,0
605,0
619,0
628,0
642,0
l
Reach
396,0
419,0
440,0
467,0
484,0
m
Standover height
804,0
804,0
804,0
804,0
804,0
x
Bottom bracket height
325,0
325,0
325,0
325,0
325,0
y
Front center
670,0
695,0
722,0
753,0
774,0
