Rocky Mountain Fusion 10 2020

MTB Cross Country
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

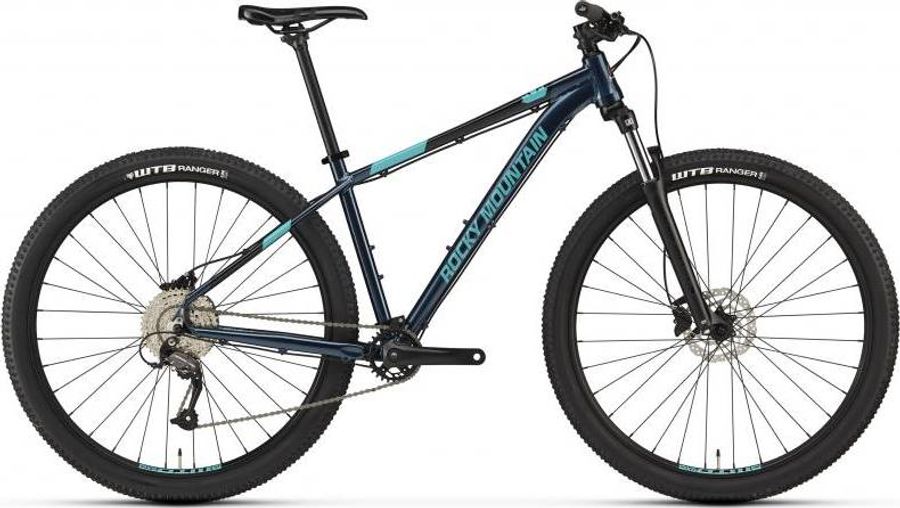

Rocky Mountain Fusion 10 2020

About the Rocky Mountain Fusion 10 2020

The Rocky Mountain Fusion 10 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 8 gears (1x8). Its features include hydraulic disc brakes e tapered head tube.

Features

The Rocky Mountain Fusion 10 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Pedals
Nylon Platform
Components
Steam
Rocky Mountain XC
Saddle
WTB Volt 142
Headset
FSA No. 57B-1
Seatpost
Rocky Mountain 27.2mm
Handlebar
Rocky Mountain XC 740mm
Brake lever
Shimano MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Rocky Mountain Microdrive 28T
Shifter
Shimano Altus
Bottom bracket
FSA Sealed Cartridge Bearing
Cassette
Sunrace 8-speed
Rear derailleur
Shimano Altus RD-M310 Smart 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M310-Smart
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/15T
Pulley cage
Smart
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Chain
KMC Z8
Frameset
Frame
Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube
Front suspension
SR Suntour XCM
Wheels
Rims
WTB SX19
Tires
WTB Ranger Comp 29 x 2.25
Spokes
2.0 Stainless
Rear hub
Shimano TX505
Front hub
Shimano TX505

Geometry

Size SM MD LG XL
a
Seat tube length
394,0
432,0
470,0
508,0
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
c
Top tube length
569,0
594,0
619,0
649,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
69,0º
69,5º
69,5º
69,5º
f
Rake
47,0
45,0
46,0
47,0
g
Trail
93,0
92,0
91,0
90,0
h
Wheelbase
1094,0
1113,0
1133,0
1164,0
i
Chainstay length
441,0
441,0
441,0
441,0
j
Bottom bracket drop
56,0
56,0
56,0
56,0
k
Stack height
605,0
611,0
617,0
627,0
l
Reach
387,0
412,0
428,0
455,0
m
Standover height
803,0
814,0
837,0
854,0
x
Bottom bracket height
318,0
318,0
318,0
318,0
y
Front center
659,0
678,0
698,0
729,0
