Rocky Mountain Instinct Alloy 50 BC Edition 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
15,05 kg
Front travel
160mm
Rear travel
155mm

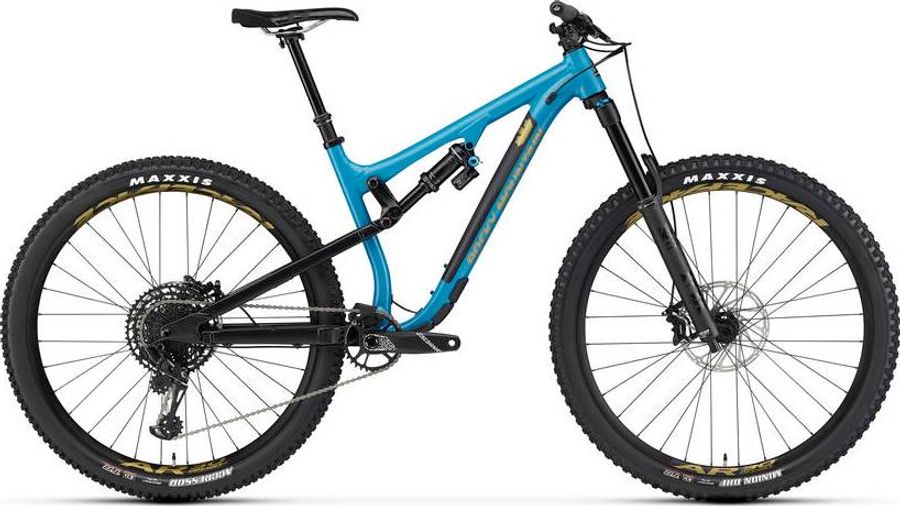

Rocky Mountain Instinct Alloy 50 BC Edition 2020

About the Rocky Mountain Instinct Alloy 50 BC Edition 2020

The Rocky Mountain Instinct Alloy 50 BC Edition 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 15,05 kg.

Features

The Rocky Mountain Instinct Alloy 50 BC Edition 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Components
Steam
Rocky Mountain 35 AM
Saddle
WTB Volt Race 142
Headset
FSA Orbit NO.57E
Seatpost
Race Face Turbine R (by Fox) Dropper 30.9mm
Handlebar
Rocky Mountain AM 780mm
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SRAM Descendent 6k Eagle 32T
Shifter
SRAM GX Eagle
Bottom bracket
SRAM BB92 DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
FORM Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs.
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
Race Face AR 30
Tires
Maxxis Minion DHF WT EXO Tubeless Ready 29 x 2.5 / Maxxis Aggressor WT EXO Tubeless Ready 29 x 2.5
Spokes
DT Swiss Competition 2.0/1.8/2.0
Rear hub
DT Swiss 370 Boost 148mm
Front hub
Rocky Mountain Sealed Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
392,0
432,0
470,0
508,0
b
Seat tube angle
74,4º
74,4º
74,4º
74,4º
c
Top tube length
569,0
594,0
619,0
649,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
65,9º
65,9º
65,9º
65,9º
f
Rake
51,0
51,0
50,0
51,0
g
Trail
112,0
112,0
113,0
112,0
h
Wheelbase
1153,0
1179,0
1205,0
1237,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
19,0
19,0
19,0
19,0
k
Stack height
599,0
604,0
613,0
622,0
l
Reach
399,0
423,0
446,0
473,0
m
Standover height
820,0
820,0
820,0
820,0
x
Bottom bracket height
355,0
355,0
355,0
355,0
y
Front center
727,0
753,0
779,0
811,0
