Rocky Mountain Instinct Carbon 50 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

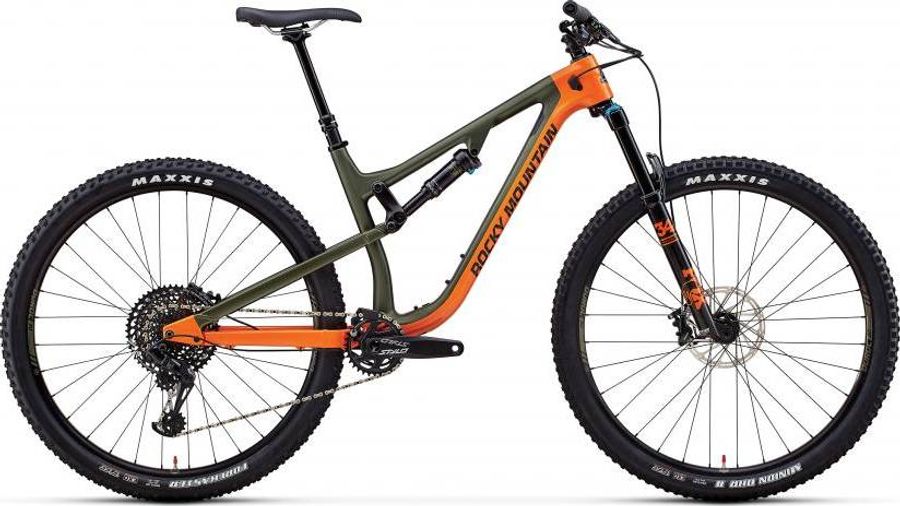

Rocky Mountain Instinct Carbon 50 2018

About the Rocky Mountain Instinct Carbon 50 2018

The Rocky Mountain Instinct Carbon 50 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 148.

Features

The Rocky Mountain Instinct Carbon 50 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Components
Steam
Rocky Mountain AM
Saddle
WTB Volt Race
Headset
FSA Orbit NO.57E
Seatpost
Race Face Aeffect Dropper 30.9mm
Handlebar
Rocky Mountain AM 760mm
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM Stylo 6k Eagle 32T
Shifter
SRAM GX Eagle
Bottom bracket
SRAM GXP BB92
Front derailleur
Rocky Mountain Spirit Guide
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
SMOOTHWALL™ Carbon. FORM™ Alloy Rear Triangle. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. RIDE-9™ Adjustable Geometry + Suspension Rate
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
Sun Düroc 30 Tubeless Compatible - Tape | Valves | Sealant Not Incl
Tires
Maxxis Minion DHR II EXO Tubeless Ready 29 x 2.3 / Maxxis Forekaster EXO Tubeless Ready 29 x 2.35
Spokes
WTB 2.0-1.8
Rear hub
DT Swiss 370 Boost 148mm
Front hub
Rocky Mountain Sealed Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
392,0
432,0
470,0
508,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
568,0
593,0
618,0
648,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
52,0
52,0
52,0
52,0
g
Trail
110,0
110,0
110,0
110,0
h
Wheelbase
1146,0
1171,0
1198,0
1229,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
36,0
36,0
37,0
37,0
k
Stack height
599,0
603,0
613,0
622,0
l
Reach
400,0
424,0
447,0
474,0
m
Standover height
802,0
802,0
802,0
802,0
x
Bottom bracket height
338,0
338,0
337,0
337,0
y
Front center
720,0
745,0
772,0
803,0
