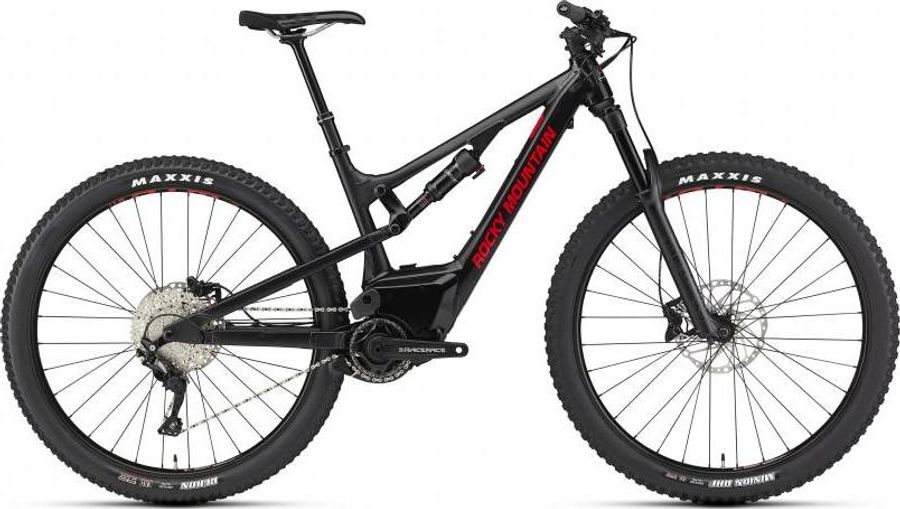

Rocky Mountain Instinct Powerplay Alloy 30 2020

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
24,3 kg
Front travel
140mm
Rear travel
140mm
Rocky Mountain Instinct Powerplay Alloy 30 2020

About the Rocky Mountain Instinct Powerplay Alloy 30 2020

The Rocky Mountain Instinct Powerplay Alloy 30 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 24,3 kg.

Features

The Rocky Mountain Instinct Powerplay Alloy 30 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Remote
iWoc Trio
Components
Steam
Rocky Mountain AM
Saddle
WTB Volt Race 142
Battery
672 Wh Fully Integrated Li-Ion | 48V FAST Charger | 80% Charge in 2:10 | 100% Charge in 3:50
Headset
FSA Orbit NO.57E
Seatpost
Rocky Mountain Toonie Drop 30.9mm
Handlebar
Rocky Mountain AM 760mm
Brake lever
Shimano MT420 4 Piston
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Race Face Ride Cinch 34T
Motor
Dyname 3.0 Class 1 eMTB Drive | 250w | 108Nm
Shifter
Shimano Deore
Bottom bracket
Shimano SM-BBMT500
Cassette
Sunrace 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Frameset
Frame
FORM Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate. 140mm Travel.
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
WTB ST i35 TCS 2.0 Tubeless
Tires
Maxxis Minion DHF EXO Tubeless Ready 29 x 2.6 / Maxxis Rekon EXO Tubeless Ready 29 x 2.6
Spokes
2.0 Stainless
Rear hub
Shimano MT400 Boost 148mm
Front hub
Shimano MT400 Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
394,0
432,0
470,0
508,0
b
Seat tube angle
74,7º
74,7º
74,6º
74,6º
c
Top tube length
569,0
593,0
619,0
650,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
52,0
53,0
52,0
53,0
g
Trail
110,0
109,0
110,0
109,0
h
Wheelbase
1155,0
1181,0
1207,0
1239,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
36,0
37,0
37,0
37,0
k
Stack height
605,0
605,0
615,0
624,0
l
Reach
401,0
426,0
449,0
476,0
m
Standover height
810,0
804,0
802,0
800,0
x
Bottom bracket height
338,0
337,0
337,0
337,0
y
Front center
720,0
746,0
772,0
804,0
