Rocky Mountain Instinct Powerplay Alloy 50 2019

E-Bike
MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm
Rocky Mountain Instinct Powerplay Alloy 50 2019

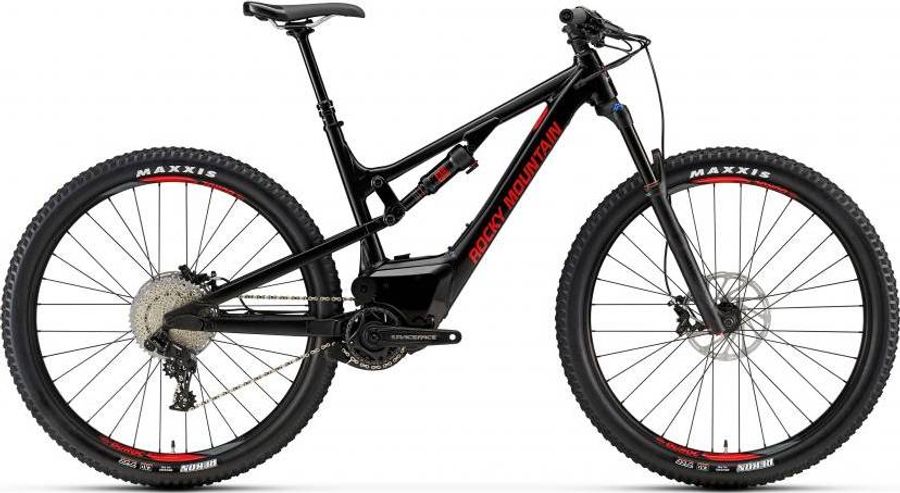

About the Rocky Mountain Instinct Powerplay Alloy 50 2019

The Rocky Mountain Instinct Powerplay Alloy 50 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 148.

Features

The Rocky Mountain Instinct Powerplay Alloy 50 2019 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Remote
iWoc Trio
Components
Steam
Rocky Mountain AM
Saddle
WTB Volt Race
Battery
Li-Ion 500 Watt/Hr Battery
Headset
FSA Orbit NO.57E
Seatpost
Race Face Aeffect Dropper 30.9mm
Handlebar
Rocky Mountain AM 760mm
Brake lever
SRAM Guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Race Face Ride Cinch 34T
Motor
Dyname 3.0 250w / 48v
Shifter
SRAM GX-1E
Bottom bracket
Race Face BB92 24mm
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
Sunrace MX8 11-46T 11-speed
Chain
KMC X11
Frameset
Frame
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate. Li-Ion 500 Watt/Hr Battery
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Sun Düroc SD37
Tires
Maxxis Rekon EXO Tubeless Ready 29 x 2.6 / R = Maxxis Rekon EXO Tubeless Ready 29 x 2.6
Spokes
WTB 2.0
Rear hub
SRAM MTH 746 Boost 148mm
Front hub
Rocky Mountain Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
394,0
432,0
470,0
508,0
b
Seat tube angle
74,7º
74,7º
74,6º
74,6º
c
Top tube length
569,0
593,0
619,0
650,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
52,0
53,0
52,0
52,0
g
Trail
110,0
109,0
110,0
110,0
h
Wheelbase
1155,44
1180,52
1206,96
1238,5
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
36,0
37,0
37,0
37,0
k
Stack height
605,0
605,0
615,0
624,0
l
Reach
401,0
426,0
449,0
476,0
m
Standover height
800,0
800,0
800,0
800,0
x
Bottom bracket height
338,0
337,0
337,0
337,0
y
Front center
721,0
746,0
772,0
804,0
