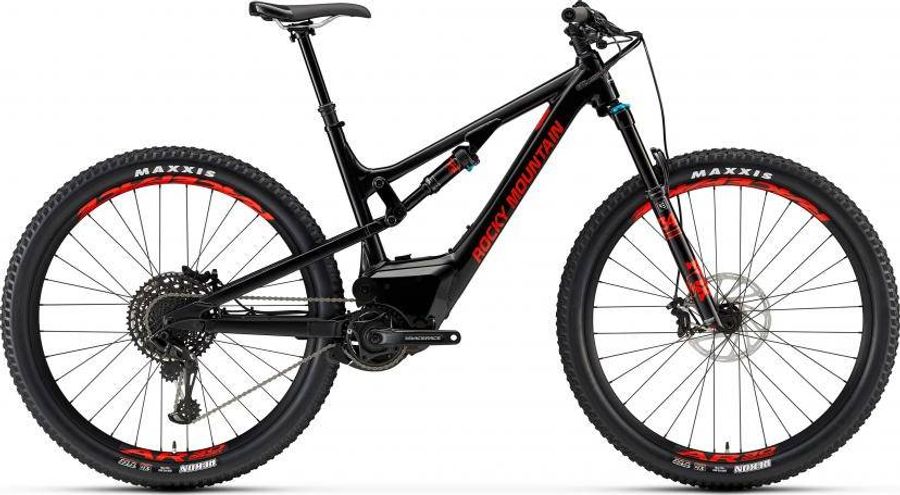

Rocky Mountain Instinct Powerplay Alloy 70 2019
The Rocky Mountain Instinct Powerplay Alloy 70 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm
About the Rocky Mountain Instinct Powerplay Alloy 70 2019
The Rocky Mountain Instinct Powerplay Alloy 70 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 148.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Rocky Mountain Lock On Light
|
|---|---|
|
Remote
|
iWoc Trio
|
|
Steam
|
Rocky Mountain 35 AM
|
|---|---|
|
Saddle
|
WTB Volt Race
|
|
Battery
|
Li-Ion 632 Watt/Hr Battery
|
|
Headset
|
FSA Orbit NO.57E
|
|
Seatpost
|
Fox Transfer Performance Elite 30.9mm
|
|
Handlebar
|
Rocky Mountain AM 780mm
|
|
Brake lever
|
SRAM Guide RE
|
|
Brakes
|
SRAM Guide RE
Hydraulic
415 g
|
|
|
|
|
Crankset
|
Race Face Aeffect Cinch 34T
|
|---|---|
|
Motor
|
Dyname 3.0 250w / 48v
|
|
Shifter
|
SRAM GX-1E Eagle
|
|
Bottom bracket
|
Race Face BB92 24mm
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate. Li-Ion 632 Watt/Hr Battery
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Rims
|
Race Face AR 30
|
|---|---|
|
Tires
|
Maxxis Rekon EXO Tubeless Ready 29 x 2.6 / R = Maxxis Rekon EXO Tubeless Ready 29 x 2.6
|
|
Spokes
|
WTB 2.3-1.8-2.0
|
|
Rear hub
|
DT Swiss Hybrid 370 Boost 148mm
|
|
Front hub
|
Rocky Mountain Sealed Boost 15mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
394,0
|
432,0
|
470,0
|
508,0
|
|
b
Seat tube angle
|
74,7º
|
74,7º
|
74,6º
|
74,6º
|
|
c
Top tube length
|
569,0
|
593,0
|
619,0
|
650,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
52,0
|
53,0
|
52,0
|
52,0
|
|
g
Trail
|
110,0
|
109,0
|
110,0
|
110,0
|
|
h
Wheelbase
|
1155,44
|
1180,52
|
1206,96
|
1238,5
|
|
i
Chainstay length
|
437,0
|
437,0
|
437,0
|
437,0
|
|
j
Bottom bracket drop
|
36,0
|
37,0
|
37,0
|
37,0
|
|
k
Stack height
|
605,0
|
605,0
|
615,0
|
624,0
|
|
l
Reach
|
401,0
|
426,0
|
449,0
|
476,0
|
|
m
Standover height
|
800,0
|
800,0
|
800,0
|
800,0
|
|
x
Bottom bracket height
|
338,0
|
337,0
|
337,0
|
337,0
|
|
y
Front center
|
721,0
|
746,0
|
772,0
|
804,0
|
