BikeWise

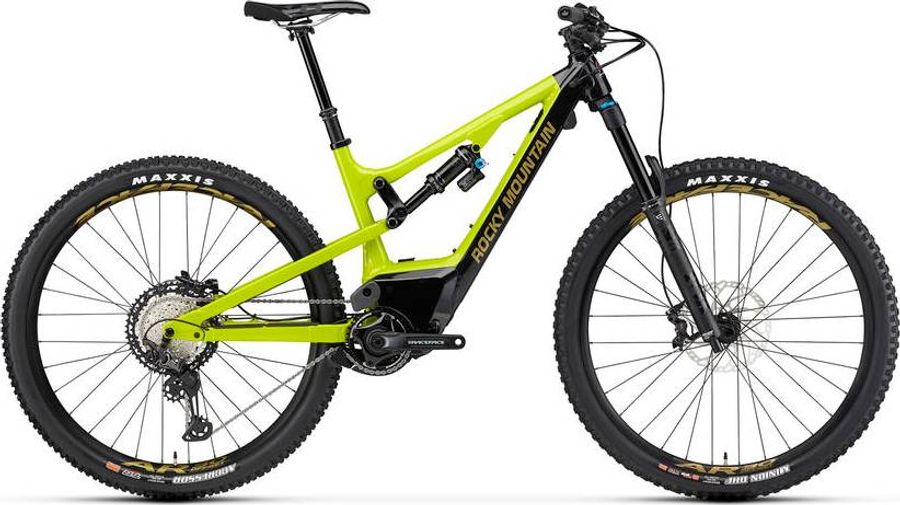

Rocky Mountain Instinct Powerplay Alloy 70 BC Edition 2020

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
25 kg
Front travel
160mm
Rear travel
155mm
Rocky Mountain Instinct Powerplay Alloy 70 BC Edition 2020

About the Rocky Mountain Instinct Powerplay Alloy 70 BC Edition 2020

The Rocky Mountain Instinct Powerplay Alloy 70 BC Edition 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 25 kg.

Features

The Rocky Mountain Instinct Powerplay Alloy 70 BC Edition 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Remote
iWoc Trio
Components
Steam
Rocky Mountain 35 AM
Saddle
WTB Volt Race 142
Battery
672 Wh Fully Integrated Li-Ion | 48V FAST Charger | 80% Charge in 2:10 | 100% Charge in 3:50
Headset
FSA Orbit NO.57E
Seatpost
Race Face Turbine R (by Fox) Dropper 30.9mm
Handlebar
Rocky Mountain AM 780mm
Brake lever
Shimano XT Trail 4 Piston
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Race Face Aeffect Cinch 34T
Motor
Dyname 3.0 Class 1 eMTB Drive | 250w | 108Nm
Shifter
Shimano XT
Bottom bracket
Shimano SM-BBMT500
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
FORM Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs.155mm Travel.
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
Race Face AR 30
Tires
Maxxis Minion DHF WT Double Down Maxx Grip 3C Tubeless Ready 29 x 2.5 / Maxxis Aggressor WT Double Down Tubeless Ready 29 x 2.5
Spokes
DT Swiss Alpine 2.3/2.0
Rear hub
DT Swiss Hybrid 370 Boost 148mm
Front hub
Rocky Mountain Sealed Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
392,0
432,0
470,0
508,0
b
Seat tube angle
74,4º
74,4º
74,4º
74,4º
c
Top tube length
569,0
594,0
619,0
649,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
65,9º
65,9º
65,9º
65,9º
f
Rake
51,0
51,0
50,0
51,0
g
Trail
112,0
112,0
113,0
112,0
h
Wheelbase
1161,0
1187,0
1213,0
1245,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
19,0
19,0
19,0
19,0
k
Stack height
599,0
604,0
613,0
622,0
l
Reach
399,0
423,0
446,0
473,0
m
Standover height
820,0
820,0
820,0
820,0
x
Bottom bracket height
355,0
355,0
355,0
355,0
y
Front center
727,0
753,0
779,0
811,0
