Rocky Mountain Pipeline Alloy 30 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

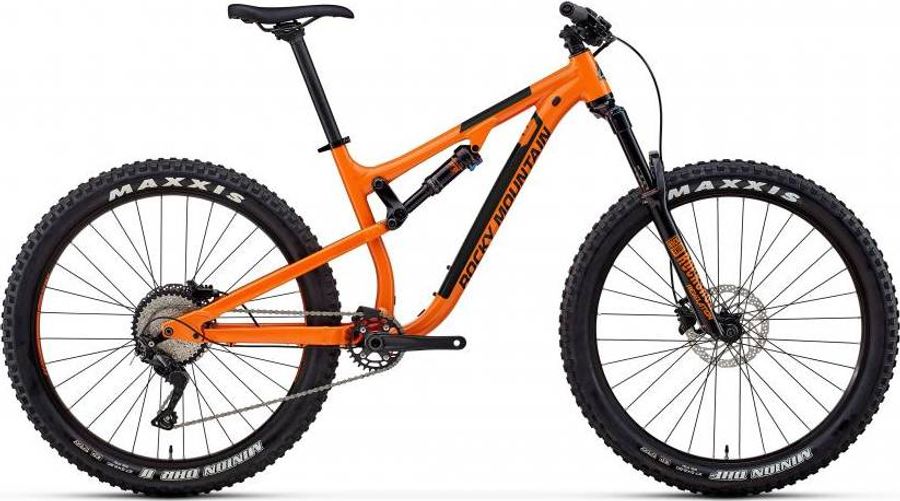

Rocky Mountain Pipeline Alloy 30 2018

About the Rocky Mountain Pipeline Alloy 30 2018

The Rocky Mountain Pipeline Alloy 30 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include internal routing, boost 148, and hydraulic disc brakes.

Features

The Rocky Mountain Pipeline Alloy 30 2018 has 4 features listed below.
cabeamento-interno
Internal routing More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Components
Steam
Rocky Mountain AM
Saddle
WTB Volt
Headset
FSA Orbit NO.57E Extend-o-matic
Seatpost
Rocky Mountain SL 30.9mm
Handlebar
Rocky Mountain AM 760mm
Brakes
Shimano Alivio BR-M395
Drivetrain
Crankset
Rocky Mountain Microdrive 2 PC 30T
Shifter
Shimano Deore
Bottom bracket
Rocky Mountain Sealed BB92 - Shimano Compatible
Front derailleur
Rocky Mountain Spirit Guide
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
Alex XM35 Tubeless Compatible - Tape | Valves | Sealant Not Incl
Tires
Maxxis DHF EXO Tubeless Ready 27.5 x 2.8 / Maxxis DHR EXO Tubeless Ready 27.5 x 2.8
Spokes
2.0 Stainless
Rear hub
Shimano M618 Boost 148mm
Front hub
Rocky Mountain Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
392,0
432,0
470,0
508,0
b
Seat tube angle
74,0º
74,1º
74,1º
74,1º
c
Top tube length
570,0
595,0
620,0
650,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
65,5º
65,6º
65,6º
65,6º
f
Rake
52,0
52,0
52,0
53,0
g
Trail
105,0
104,0
104,0
103,0
h
Wheelbase
1150,0
1175,0
1202,0
1234,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
602,0
607,0
616,0
625,0
l
Reach
395,0
419,0
442,0
469,0
m
Standover height
798,0
798,0
798,0
798,0
x
Bottom bracket height
322,0
322,0
322,0
322,0
y
Front center
724,0
749,0
776,0
808,0
