Rocky Mountain Pipeline Alloy 30 2019

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

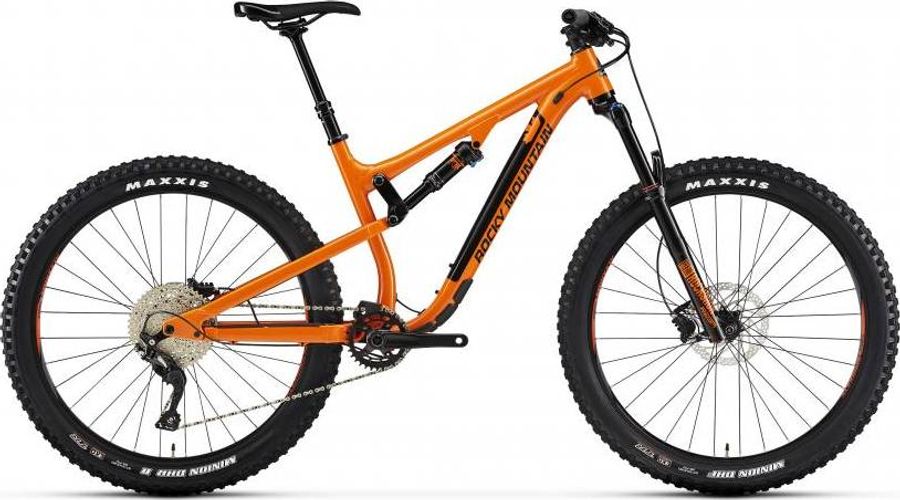

Rocky Mountain Pipeline Alloy 30 2019

About the Rocky Mountain Pipeline Alloy 30 2019

The Rocky Mountain Pipeline Alloy 30 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, dropper seatpost, and boost 148.

Features

The Rocky Mountain Pipeline Alloy 30 2019 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Components
Steam
Rocky Mountain AM
Saddle
WTB Volt
Headset
FSA Orbit NO.57E Extend-o-matic
Seatpost
Race Face Aeffect Dropper 30.9mm
Handlebar
Rocky Mountain AM 760mm
Brake lever
Shimano MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Rocky Mountain Microdrive 2 PC 32T
Shifter
Shimano Deore
Bottom bracket
Rocky Mountain Sealed BB92 - Shimano Compatible
Cassette
Sunrace 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Frameset
Frame
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Alex XM35 Tubeless Compatible - Tape | Valves | Sealant Not Incl
Tires
Maxxis DHF EXO Tubeless Ready 27.5 x 2.8 / Maxxis DHR EXO Tubeless Ready 27.5 x 2.8
Spokes
2.0 Stainless
Rear hub
Shimano MT400 Boost 148mm
Front hub
Shimano MT400 Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
392,0
432,0
470,0
508,0
b
Seat tube angle
74,0º
74,1º
74,1º
74,1º
c
Top tube length
570,0
595,0
620,0
650,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
65,5º
65,6º
65,6º
65,6º
f
Rake
52,0
52,0
52,0
53,0
g
Trail
105,0
104,0
104,0
103,0
h
Wheelbase
1150,0
1175,0
1202,0
1234,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
602,0
607,0
616,0
625,0
l
Reach
395,0
419,0
442,0
469,0
m
Standover height
798,0
798,0
798,0
798,0
x
Bottom bracket height
322,0
322,0
322,0
322,0
y
Front center
724,0
749,0
776,0
808,0
