Rocky Mountain Pipeline Alloy 50 2018

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

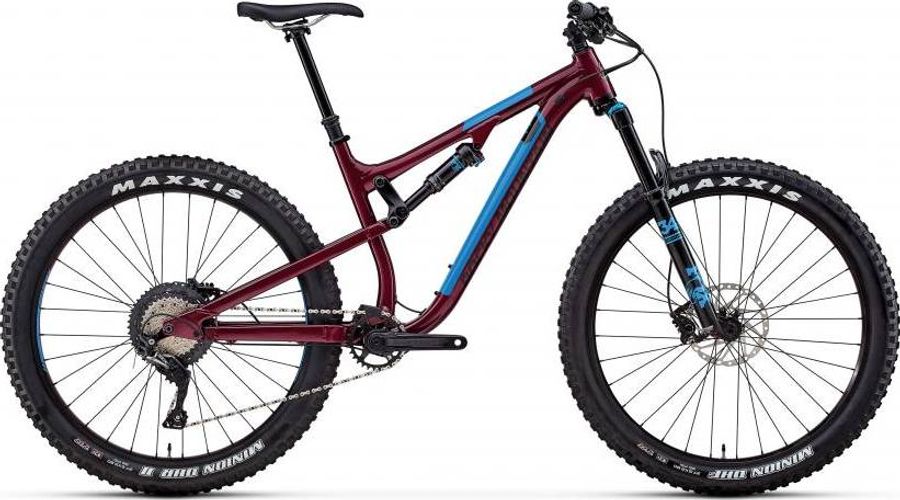

Rocky Mountain Pipeline Alloy 50 2018

About the Rocky Mountain Pipeline Alloy 50 2018

The Rocky Mountain Pipeline Alloy 50 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 148.

Features

The Rocky Mountain Pipeline Alloy 50 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Components
Steam
Rocky Mountain 35 AM
Saddle
WTB Volt Race
Headset
FSA Orbit NO.57E Extend-o-matic
Seatpost
Fox Transfer Performance Elite 30.9mm
Handlebar
Race Face Chester 780mm
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Race Face Aeffect Cinch 30T Steel
Shifter
Shimano SLX
Bottom bracket
Race Face BB92
Front derailleur
Rocky Mountain Spirit Guide
Rear derailleur
Shimano SLX RD-M7000-11-GS
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
Alex XM35 Tubeless Compatible - Tape | Valves | Sealant Not Incl
Tires
Maxxis DHF EXO Tubeless Ready 27.5 x 2.8 / Maxxis DHR EXO Tubeless Ready 27.5 x 2.8
Spokes
WTB 2.0
Rear hub
Shimano M618 Boost 148mm
Front hub
Shimano M618 Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
392,0
432,0
470,0
508,0
b
Seat tube angle
74,0º
74,1º
74,1º
74,1º
c
Top tube length
570,0
595,0
620,0
650,0
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
65,5º
65,6º
65,6º
65,6º
f
Rake
52,0
52,0
52,0
53,0
g
Trail
105,0
104,0
104,0
103,0
h
Wheelbase
1150,0
1175,0
1202,0
1234,0
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
602,0
607,0
616,0
625,0
l
Reach
395,0
419,0
442,0
469,0
m
Standover height
798,0
798,0
798,0
798,0
x
Bottom bracket height
322,0
322,0
322,0
322,0
y
Front center
724,0
749,0
776,0
808,0
