Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

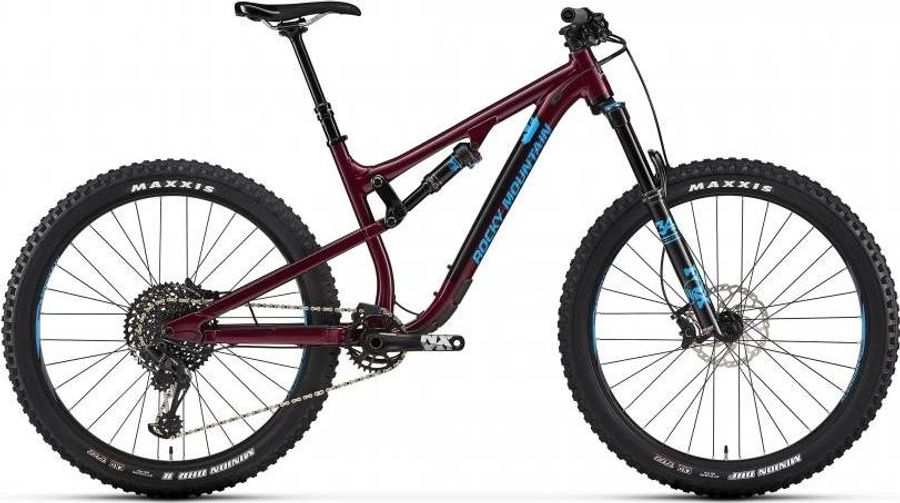

About the Rocky Mountain Pipeline Alloy 50 2019
The Rocky Mountain Pipeline Alloy 50 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 148.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Rocky Mountain Lock On Light
|
|---|
|
Steam
|
Rocky Mountain AM
|
|---|---|
|
Saddle
|
WTB Volt Race
|
|
Headset
|
FSA Orbit NO.57E Extend-o-matic
|
|
Seatpost
|
Race Face Aeffect Dropper 30.9mm
|
|
Handlebar
|
Rocky Mountain AM 760mm
|
|
Brake lever
|
Shimano SLX
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
SRAM NX 32T
|
|---|---|
|
Shifter
|
SRAM NX Eagle
|
|
Bottom bracket
|
SRAM BB92 DUB
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate
|
|---|---|
|
Front suspension
|
Fox 34 Float Performance
|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Rims
|
Alex XM35 Tubeless Compatible - Tape | Valves | Sealant Not Incl
|
|---|---|
|
Tires
|
Maxxis DHF EXO Tubeless Ready 27.5 x 2.8 / Maxxis DHR EXO Tubeless Ready 27.5 x 2.8
|
|
Spokes
|
2.0 Stainless
|
|
Rear hub
|
DT Swiss 370 Boost 148mm
|
|
Front hub
|
Rocky Mountain Sealed Boost 15mm
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
392,0
|
432,0
|
470,0
|
508,0
|
|
b
Seat tube angle
|
74,0º
|
74,1º
|
74,1º
|
74,1º
|
|
c
Top tube length
|
570,0
|
595,0
|
620,0
|
650,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
65,5º
|
65,6º
|
65,6º
|
65,6º
|
|
f
Rake
|
52,0
|
52,0
|
52,0
|
53,0
|
|
g
Trail
|
105,0
|
104,0
|
104,0
|
103,0
|
|
h
Wheelbase
|
1150,0
|
1175,0
|
1202,0
|
1234,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
33,0
|
33,0
|
33,0
|
33,0
|
|
k
Stack height
|
602,0
|
607,0
|
616,0
|
625,0
|
|
l
Reach
|
395,0
|
419,0
|
442,0
|
469,0
|
|
m
Standover height
|
798,0
|
798,0
|
798,0
|
798,0
|
|
x
Bottom bracket height
|
322,0
|
322,0
|
322,0
|
322,0
|
|
y
Front center
|
724,0
|
749,0
|
776,0
|
808,0
|
