Rocky Mountain Slayer Alloy 30 (29") 2020

MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
17,25 kg
Front travel
170mm
Rear travel
170mm

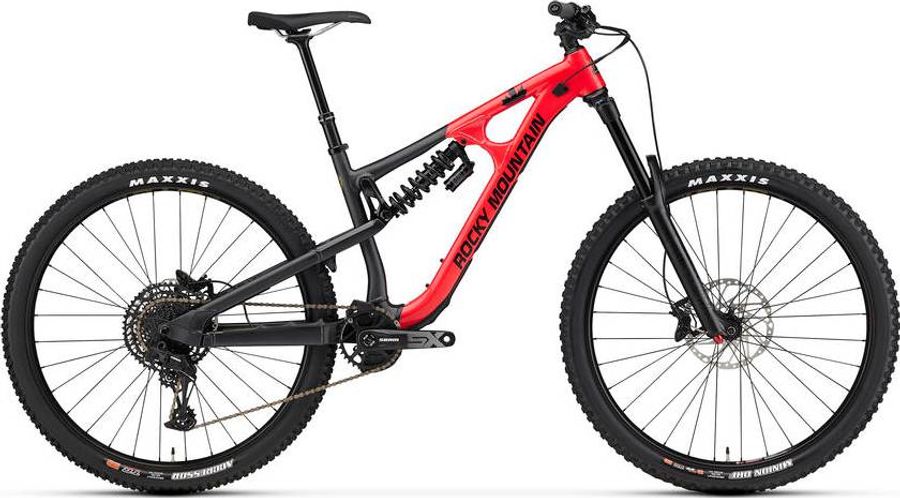

Rocky Mountain Slayer Alloy 30 (29") 2020

About the Rocky Mountain Slayer Alloy 30 (29") 2020

The Rocky Mountain Slayer Alloy 30 (29") 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 17,25 kg.

Features

The Rocky Mountain Slayer Alloy 30 (29") 2020 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On XC
Components
Steam
Rocky Mountain 35 AM
Saddle
WTB Volt Race 142
Headset
FSA Orbit NO.57E
Seatpost
Rocky Mountain Toonie Drop 30.9mm
Handlebar
Rocky Mountain AM 780mm
Brake lever
Shimano MT520 4 Piston
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
SRAM SX Eagle 29: 32T / 27.5: 34T
Shifter
SRAM SX Eagle
Bottom bracket
SRAM BB92 DUB
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
FORM Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-4 Adjustable Geometry.
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Coil Select 393 g
Body eyelet
No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-SEL-A2
Name
Super Deluxe Coil Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
393
Wheels
Rims
WTB ST i30 TCS 2.0 Tubeless
Tires
Maxxis Minion DHF WT Double Down Maxx Grip 3C Tubeless Ready 2.5 / Maxxis Aggressor WT Double Down Tubeless Ready 2.5
Spokes
2.0 Stainless
Rear hub
Shimano MT400 Boost 148mm
Front hub
Shimano MT400 Boost 15mm

Geometry

Size MD LG XL
a
Seat tube length
420,0
445,0
480,0
b
Seat tube angle
75,8º
75,8º
75,8º
c
Top tube length
603,0
631,0
660,0
d
Head tube length
95,0
110,0
125,0
e
Head tube angle
63,8º
63,8º
63,8º
f
Rake
42,0
38,0
45,0
g
Trail
137,0
142,0
134,0
h
Wheelbase
1223,0
1252,0
1289,0
i
Chainstay length
446,0
446,0
446,0
j
Bottom bracket drop
34,0
34,0
34,0
k
Stack height
625,0
638,0
652,0
l
Reach
445,0
472,0
495,0
m
Standover height
833,0
833,0
833,0
x
Bottom bracket height
340,0
340,0
340,0
y
Front center
779,0
808,0
845,0
