Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

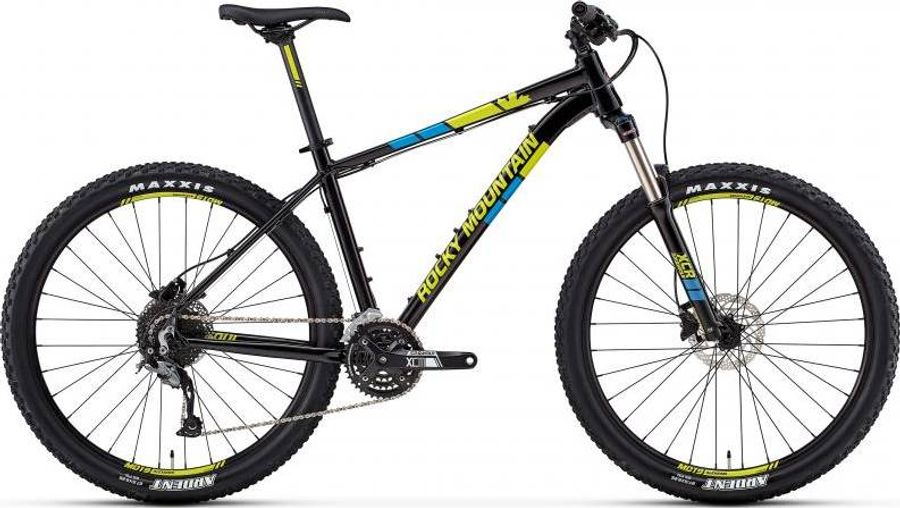

About the Rocky Mountain Soul 20 2018
The Rocky Mountain Soul 20 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes e tapered head tube.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Rocky Mountain Lock On Light
|
|---|
|
Steam
|
Rocky Mountain AM
|
|---|---|
|
Saddle
|
WTB Volt
|
|
Headset
|
FSA No. 57B-1
|
|
Seatpost
|
Rocky Mountain SL 30.9mm
|
|
Handlebar
|
Rocky Mountain AM 760mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Suntour XCM 40/30/22T
|
|---|---|
|
Shifter
|
Shimano Acera
|
|
Bottom bracket
|
SR Suntour Sealed Cartridge Bearing
|
|
Front derailleur
|
Shimano Acera
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Chain
|
KMC X9
|
|
Rear derailleur
|
Shimano Alivio RD-M3100
SGS
9s
|
|
|
|
|
Frame
|
Rocky Mountain 6061 Alloy. Threaded BB. Zero Stack Tapered Headtube
|
|---|---|
|
Front suspension
|
SR Suntour XCR 32
|
|
Rims
|
Alex MD19
|
|---|---|
|
Tires
|
Maxxis Ardent 27.5 x 2.25 / Maxxis Ardent 27.5 x 2.25
|
|
Spokes
|
2.0 Stainless
|
|
Rear hub
|
Shimano TX505
|
|
Front hub
|
Shimano TX505
|
Geometry
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
430,0
|
457,0
|
483,0
|
521,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
529,0
|
554,0
|
579,0
|
604,0
|
624,0
|
649,0
|
|
d
Head tube length
|
100,0
|
110,0
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
52,0
|
53,0
|
52,0
|
54,0
|
52,0
|
54,0
|
|
g
Trail
|
94,0
|
93,0
|
94,0
|
92,0
|
94,0
|
92,0
|
|
h
Wheelbase
|
1057,0
|
1085,0
|
1110,0
|
1136,0
|
1157,0
|
1184,0
|
|
i
Chainstay length
|
419,0
|
419,0
|
419,0
|
419,0
|
419,0
|
419,0
|
|
j
Bottom bracket drop
|
48,0
|
48,0
|
48,0
|
48,0
|
48,0
|
48,0
|
|
k
Stack height
|
571,0
|
595,0
|
595,0
|
604,0
|
614,0
|
624,0
|
|
l
Reach
|
354,0
|
370,0
|
396,0
|
417,0
|
435,0
|
456,0
|
|
m
Standover height
|
764,5
|
799,5
|
802,0
|
811,0
|
824,0
|
841,0
|
|
x
Bottom bracket height
|
307,0
|
307,0
|
307,0
|
307,0
|
307,0
|
307,0
|
|
y
Front center
|
643,0
|
670,0
|
695,0
|
721,0
|
742,0
|
769,0
|
