BikeWise

Rocky Mountain Thunderbolt Alloy 10 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,46 kg
Front travel
140mm
Rear travel
140mm

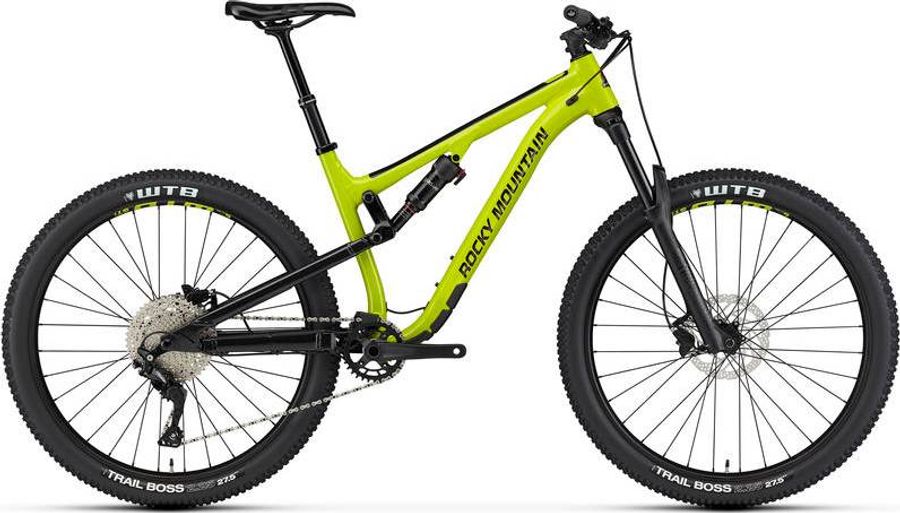

Rocky Mountain Thunderbolt Alloy 10 2020

About the Rocky Mountain Thunderbolt Alloy 10 2020

The Rocky Mountain Thunderbolt Alloy 10 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing, dropper seatpost, and boost 148. The bike weighs approximately 14,46 kg.

Features

The Rocky Mountain Thunderbolt Alloy 10 2020 has 4 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Components
Steam
Rocky Mountain AM
Saddle
WTB Volt 142
Headset
FSA Orbit NO.57E
Seatpost
Rocky Mountain Toonie Drop 30.9mm
Handlebar
Rocky Mountain AM 760mm
Brake lever
Shimano MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Rocky Mountain Microdrive 2 PC 32T
Shifter
Shimano Deore
Bottom bracket
SunRace CSMS2 11-46T
Cassette
Sunrace 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Frameset
Frame
FORM Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9 Adjustable Geometry + Suspension Rate
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
WTB ST i25 TCS Tubeless
Tires
WTB Trail Boss Comp 27.5 x 2.25 / WTB Trail Boss Comp 27.5 x 2.25
Spokes
2.0 Stainless
Rear hub
Shimano MT400 Boost 148mm
Front hub
Shimano MT400 Boost 15mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
432,0
471,0
509,0
b
Seat tube angle
73,9º
73,9º
73,9º
73,9º
73,9º
c
Top tube length
555,0
585,0
610,0
635,0
665,0
d
Head tube length
100,0
110,0
120,0
130,0
145,0
e
Head tube angle
65,9º
65,9º
65,9º
65,9º
65,9º
f
Rake
44,0
44,0
44,0
44,0
43,0
g
Trail
111,0
111,0
111,0
111,0
112,0
h
Wheelbase
1111,0
1143,0
1169,0
1196,0
1228,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
24,0
24,0
24,0
24,0
24,0
k
Stack height
590,0
600,0
609,0
618,0
633,0
l
Reach
387,0
415,0
437,0
460,0
486,0
m
Standover height
806,0
806,0
806,0
806,0
806,0
x
Bottom bracket height
331,0
331,0
331,0
331,0
331,0
y
Front center
679,0
711,0
737,0
764,0
796,0
