Rocky Mountain Thunderbolt Carbon 30 2018

MTB Trail
Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,45 kg
Front travel
130mm
Rear travel
130mm

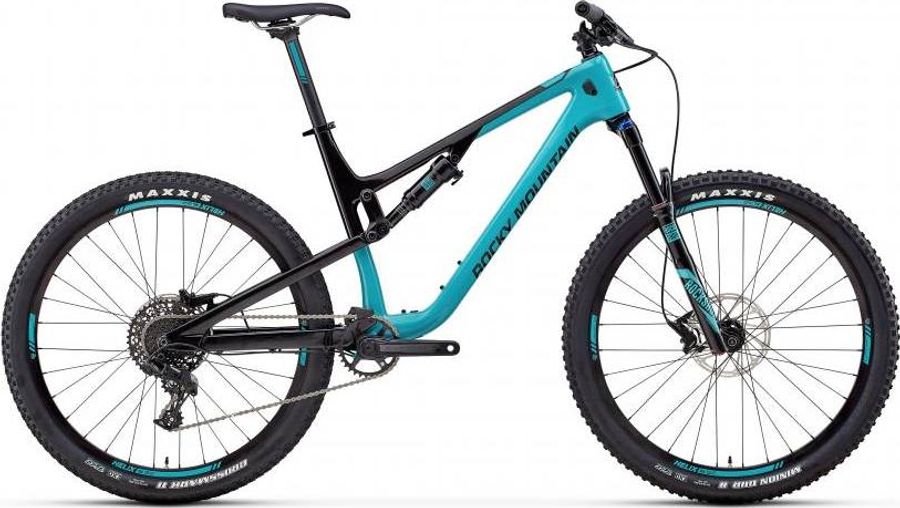

Rocky Mountain Thunderbolt Carbon 30 2018

About the Rocky Mountain Thunderbolt Carbon 30 2018

The Rocky Mountain Thunderbolt Carbon 30 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include internal routing, boost 148, and hydraulic disc brakes. The bike weighs approximately 12,45 kg.

Features

The Rocky Mountain Thunderbolt Carbon 30 2018 has 3 features listed below.
cabeamento-interno
Internal routing More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Rocky Mountain Lock On Light
Components
Steam
Rocky Mountain AM
Saddle
WTB Volt Race
Headset
FSA Orbit NO.57E
Seatpost
Rocky Mountain SL 30.9mm
Handlebar
Rocky Mountain AM 760mm
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Race Face Aeffect Cinch 32T Steel
Shifter
SRAM NX
Bottom bracket
Race Face BB92
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
SMOOTHWALL™ Carbon. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry + Suspension Rate / SMOOTHWALL™ rear triangle
Front suspension
RockShox Recon Gold
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Sun Helix TR25 SL Tubeless Compatible - Tape | Valves | Sealant Not Incl
Tires
Maxxis Minion DHR II Folding 27.5 x 2.3 / Maxxis Crossmark II 27.5 x 2.25
Spokes
WTB 2.0
Rear hub
SRAM MTH 746 Boost 148mm
Front hub
Rocky Mountain Sealed Boost 15mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
356,0
394,0
432,0
471,0
509,0
b
Seat tube angle
74,4º
74,4º
74,4º
74,4º
74,4º
c
Top tube length
554,0
584,0
609,0
634,0
664,0
d
Head tube length
100,0
110,0
120,0
130,0
145,0
e
Head tube angle
66,4º
66,4º
66,4º
66,4º
66,4º
f
Rake
45,0
46,0
43,0
44,0
44,0
g
Trail
106,0
105,0
108,0
107,0
107,0
h
Wheelbase
1107,0
1139,0
1164,0
1191,0
1224,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
28,0
28,0
28,0
28,0
28,0
k
Stack height
587,0
596,0
606,0
615,0
629,0
l
Reach
392,0
419,0
442,0
465,0
491,0
m
Standover height
799,0
799,0
799,0
799,0
799,0
x
Bottom bracket height
327,0
327,0
327,0
327,0
327,0
y
Front center
676,0
707,0
732,0
759,0
792,0
