Rocky Mountain Vertex Carbon 90 2018

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

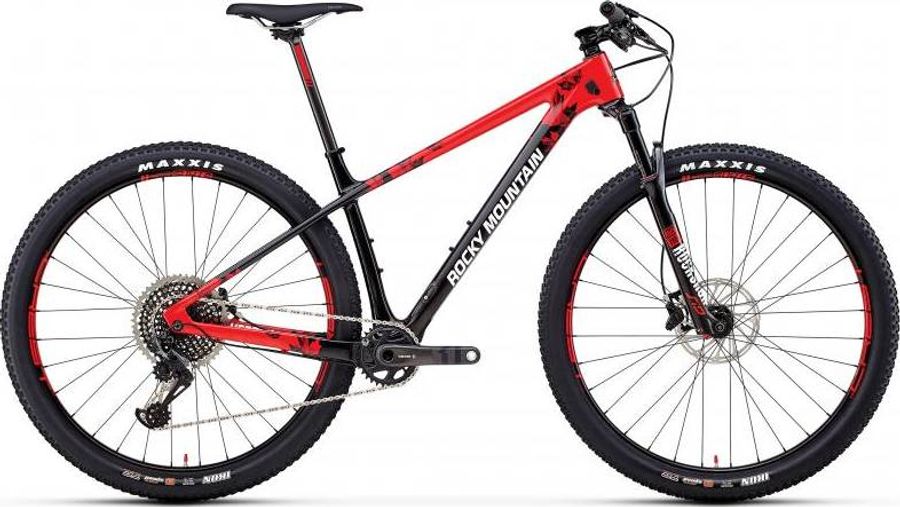

Rocky Mountain Vertex Carbon 90 2018

About the Rocky Mountain Vertex Carbon 90 2018

The Rocky Mountain Vertex Carbon 90 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 148, and hydraulic disc brakes.

Features

The Rocky Mountain Vertex Carbon 90 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Rocky Mountain Lock On XC
Components
Steam
Rocky Mountain 35 CNC
Saddle
WTB Silverado Race
Headset
FSA Orbit NO.57E
Seatpost
Rocky Mountain Carbon SL 27.2mm
Handlebar
Race Face Next 760mm
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X1 Carbon Eagle 32T
Shifter
SRAM X01 Eagle
Bottom bracket
SRAM GXP BB92
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
SMOOTHWALL™ Carbon Super Hi Mod. Press Fit BB. Internal Cable Routing. 27.2mm Dropper Post Compatible
Front suspension
RockShox SID Select+ DebonAir 1703 g
Color
Diffusion Black, Diffusion Black W/Dark Polar Grey Foil Decal, Gloss Black, Gloss Black W/Dark Polar Grey Foil Decal
Damper type
Charger 2 RL
fork offset
44mm (29")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-SID-SELP-C1
Name
SID Select+
Spring
DebonAir
Travel (mm)
100mm, 110mm, 120mm
Upper tube type
35mm tapered wall aluminum
Weight based on
120mm travel W/Maxle Stealth
Weight
1703
Wheel size
29"
Wheels
Rims
Stans Crest MK3 - Tubeless Ready - Tape | Valves Incl
Tires
Maxxis Ikon Maxx Speed 3C Tubeless Ready 29 x 2.2 / Maxxis Ikon Maxx Speed 3C Tubeless Ready 29 x 2.2
Spokes
WTB 1.8-1.6
Rear hub
DT Swiss 350 Boost 148mm
Front hub
Rocky Mountain Sealed Boost 15mm

Geometry

Size SM MD LG XL
a
Seat tube length
393,7
431,8
469,9
508,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
568,7
593,7
618,7
643,7
d
Head tube length
90,0
95,0
110,0
125,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
53,0
53,0
53,0
53,0
g
Trail
83,0
83,0
83,0
83,0
h
Wheelbase
1069,7
1094,7
1120,7
1146,7
i
Chainstay length
423,7
423,7
423,7
423,7
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
595,9
600,56
614,6
628,66
l
Reach
384,6
408,2
428,9
449,6
m
Standover height
819,7
819,7
819,7
819,7
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
653,0
678,0
704,0
730,0
