Santa Cruz 5010 C S 2017

MTB Trail
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm

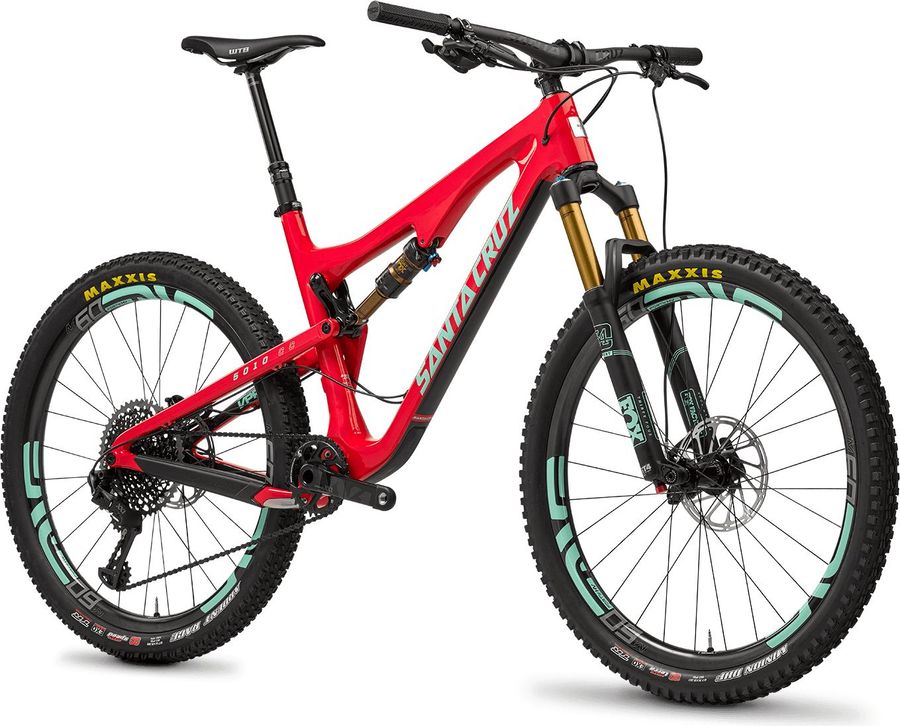

Santa Cruz 5010 C S 2017

About the Santa Cruz 5010 C S 2017

The Santa Cruz 5010 C S 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz 5010 C S 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Lock-on
Components
Steam
Race Face Turbine R; 35mm
Saddle
WTB Silverado SLT
Headset
Cane Creek 110 series tapered, cartridge bearing
Seatpost
Rockshox Reverb Stealth, 150mm travel (125mm travel on size small)
Handlebar
Santa Cruz Carbon 760mm Bar, 35mm clamp
Discs
Avid Centerline; 180mm
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
SRAM XX1 Eagle, 32 Tooth
Shifter
SRAM XX1 Eagle
Bottom bracket
Included w/ crankset
Front derailleur
Shimano SLX M7000; Direct Mount
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Carbon CC
Rear suspension
Fox Float Factory
Front suspension
Fox 34 Float Factory Kashima
Wheels
Rims
Race Face ARC 24; 28h
Tires
Maxxis Minion DHF EXO TR; 27.5x2.3
Spokes
DT Swiss Competition Double-Butted
Rear hub
Industry Nine Torch 148x12
Front hub
Industry Nine Torch 110x15

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
420,0
450,0
495,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
571,0
593,0
616,0
649,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
43,0
43,0
42,0
42,0
g
Trail
104,0
104,0
105,0
105,0
h
Wheelbase
1112,0
1136,0
1159,0
1193,0
i
Chainstay length
421,0
421,0
421,0
421,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
580,0
590,0
599,0
608,0
l
Reach
400,0
420,0
440,0
470,0
m
Standover height
706,0
712,0
714,0
727,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
692,0
716,0
739,0
773,0
