Santa Cruz 5010 CC XX1 2018

MTB Trail
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

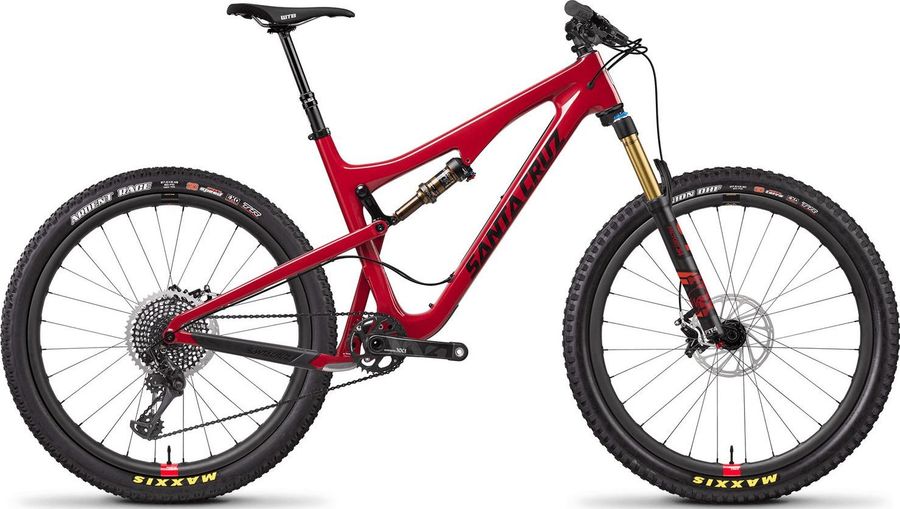

Santa Cruz 5010 CC XX1 2018

About the Santa Cruz 5010 CC XX1 2018

The Santa Cruz 5010 CC XX1 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz 5010 CC XX1 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale, lock-on
Components
Steam
Race Face Turbine, 50mm
Saddle
WTB Silverado SLT
Headset
Cane Creek 110 zero stack
Seatpost
RockShox Reverb Stealth
Handlebar
Santa Cruz Bicycles Carbon, 35mm diameter, 760mm width
Brake lever
SRAM Guide Ultimate
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
SRAM XX1 Eagle
Shifter
SRAM XX1 Eagle, 12-speed
Bottom bracket
SRAM GXP Team
Cassette
SRAM XG-1295 X01 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Carbon Fiber
Front suspension
Fox 34 Float Factory
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Standard: Race Face ARC 27, 28 hole, Upgrade: Santa Cruz Reserve 27 Carbon, 28 hole
Tires
Front: Maxxis Minion DHF, 2.3", 3c, EXO, TR, Rear: Maxxis Ardent Race, 2.35", 3c, EXO, TR
Spokes
DT Swiss Competition (28)
Rear hub
Front: Industry Nine, 15mm x 110mm, 28 hole, Rear: Industry Nine, 12mm x 148mm, 28 hole, XD Driver
Front hub
Front: Industry Nine, 15mm x 110mm, 28 hole, Rear: Industry Nine, 12mm x 148mm, 28 hole, XD Driver

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
420,0
450,0
495,0
b
Seat tube angle
73,8º
73,8º
73,8º
73,8º
c
Top tube length
571,0
593,0
616,0
649,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1112,0
1136,0
1159,0
1193,0
i
Chainstay length
421,0
421,0
421,0
421,0
j
Bottom bracket drop
21,0
21,0
21,0
21,0
k
Stack height
580,0
590,0
599,0
608,0
l
Reach
400,0
420,0
440,0
470,0
m
Standover height
706,0
712,0
714,0
727,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
-
-
-
-
