Santa Cruz 5010 R / Carbon C / 27.5 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Rear travel
130mm

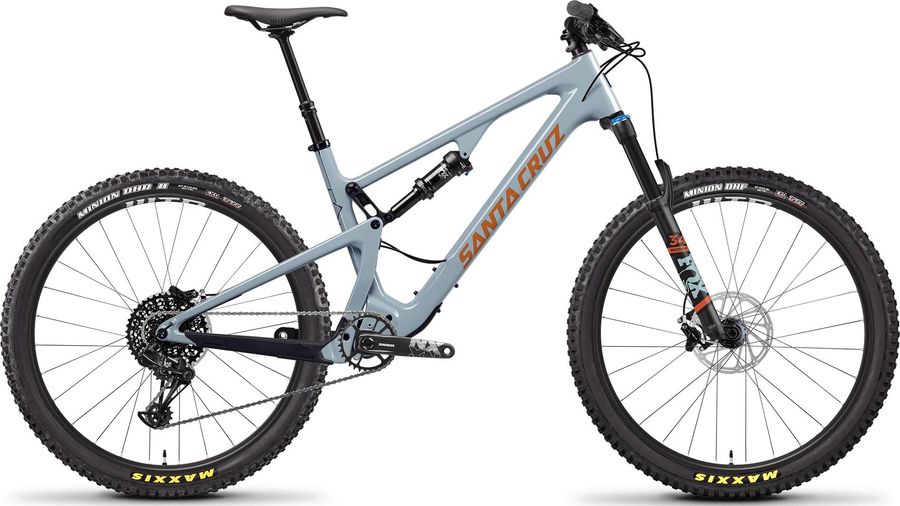

Santa Cruz 5010 R / Carbon C / 27.5 2020

About the Santa Cruz 5010 R / Carbon C / 27.5 2020

The Santa Cruz 5010 R / Carbon C / 27.5 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz 5010 R / Carbon C / 27.5 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Race Face Ride 50mm
Saddle
WTB Silverado Race Saddle
Headset
Cane Creek 10 IS Integrated Headset
Seatpost
Race Face Aeffect 150mm
Handlebar
Race Face Ride 35x760 bar
Discs
Avid Centerline 180mm
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
SRAM NX Eagle 148 DUB, 32t - 165 (XS), 170mm (S), 175mm (M-XL)
Shifter
SRAM NX Eagle
Bottom bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
5010 R / Carbon C / 27.5
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
WTB ST i35 TCS 2.0 27.5" Rims
Tires
Maxxis Minion DHF EXO TR 27.5x2.3
Spokes
DT Competition (32)
Rear hub
SRAM MTH 746, 12x148, 32h
Front hub
SRAM MTH 716, 15x110, 32h

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
b
Seat tube angle
75,2º
74,9º
75,2º
74,9º
75,2º
74,9º
75,2º
74,9º
75,2º
74,9º
c
Top tube length
542,0
543,0
578,0
579,0
602,0
602,0
624,0
625,0
664,0
665,0
d
Head tube length
100,0
100,0
120,0
120,0
130,0
130,0
140,0
140,0
170,0
170,0
e
Head tube angle
66,5º
66,2º
66,5º
66,2º
66,5º
66,2º
66,5º
66,2º
66,5º
66,2º
f
Rake
48,0
47,0
46,0
46,0
46,0
46,0
46,0
46,0
46,0
46,0
g
Trail
102,0
105,0
104,0
107,0
104,0
107,0
104,0
107,0
104,0
107,0
h
Wheelbase
1110,0
1110,0
1146,0
1147,0
1170,0
1171,0
1194,0
1195,0
1236,0
1237,0
i
Chainstay length
429,0
430,0
429,0
430,0
429,0
430,0
429,0
430,0
429,0
430,0
j
Bottom bracket drop
20,0
24,0
20,0
24,0
20,0
24,0
20,0
24,0
20,0
24,0
k
Stack height
574,0
577,0
593,0
595,0
602,0
604,0
611,0
613,0
638,0
640,0
l
Reach
394,0
391,0
424,0
421,0
444,0
441,0
464,0
461,0
494,0
491,0
m
Standover height
694,0
688,0
714,0
708,0
717,0
711,0
717,0
712,0
716,0
711,0
x
Bottom bracket height
334,0
330,0
334,0
330,0
334,0
330,0
334,0
330,0
334,0
330,0
y
Front center
679,0
679,0
717,0
717,0
741,0
741,0
765,0
765,0
807,0
807,0
