BikeWise

Santa Cruz 5010 S / Carbon C / 27.5 2021

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm

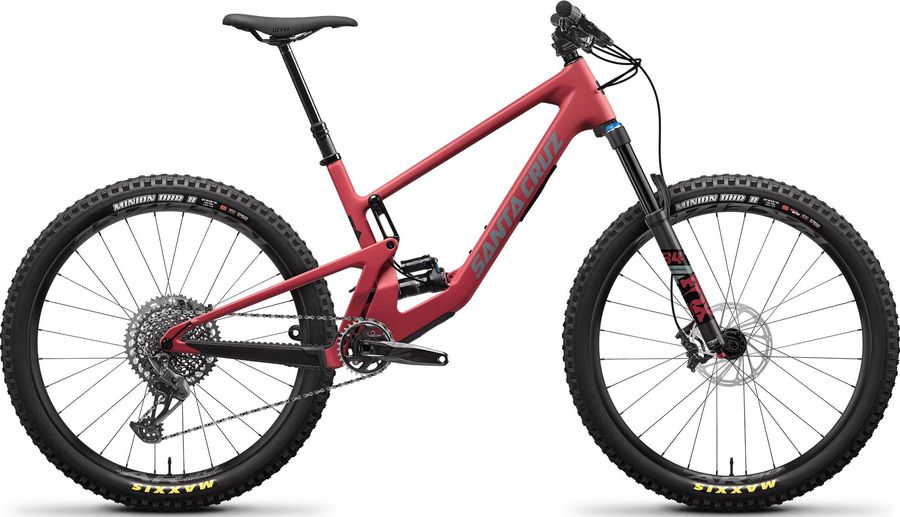

Santa Cruz 5010 S / Carbon C / 27.5 2021

About the Santa Cruz 5010 S / Carbon C / 27.5 2021

The Santa Cruz 5010 S / Carbon C / 27.5 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz 5010 S / Carbon C / 27.5 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Burgtec Enduro MK3 42mm
Saddle
WTB Silverado Pro
Headset
Cane Creek 40 IS Integrated Headset
Seatpost
RockShox Reverb Stealth 31.6
Handlebar
Burgtec Alloy Bar 35x800mm
Discs
Avid Centerline 180mm
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
SRAM GX Eagle 148 DUB 32t
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 GX Eagle
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
5010 S / Carbon C / 27.5
Front suspension
Fox 34 Float Performance
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
Race Face AR Offset 30 27.5" RIms
Tires
Maxxis Minion DHR II 27.5"x2.4 MaxxGRIP EXO TR
Spokes
Sapim Race
Rear hub
DT 370 12x148 XD 32h
Front hub
DT 370 15x110 32H

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
b
Seat tube angle
77,9º
77,5º
77,6º
77,2º
77,4º
77,0º
77,2º
76,8º
77,0º
76,6º
c
Top tube length
528,0
528,0
559,0
560,0
589,0
591,0
620,0
621,0
650,0
651,0
d
Head tube length
100,0
100,0
120,0
120,0
135,0
135,0
150,0
150,0
165,0
165,0
e
Head tube angle
65,7º
65,4º
65,7º
65,4º
65,7º
65,4º
65,7º
65,4º
65,7º
65,4º
f
Rake
49,0
44,0
50,0
44,0
47,0
45,0
44,0
44,0
42,0
44,0
g
Trail
107,0
114,0
106,0
114,0
109,0
113,0
112,0
114,0
114,0
114,0
h
Wheelbase
1132,0
1127,0
1166,0
1160,0
1197,0
1195,0
1228,0
1229,0
1259,0
1263,0
i
Chainstay length
427,0
428,0
427,0
428,0
430,0
431,0
433,0
434,0
436,0
437,0
j
Bottom bracket drop
16,0
20,0
16,0
20,0
16,0
20,0
16,0
20,0
16,0
20,0
k
Stack height
576,0
578,0
594,0
597,0
608,0
610,0
622,0
624,0
635,0
638,0
l
Reach
404,0
401,0
429,0
426,0
454,0
451,0
479,0
476,0
504,0
501,0
m
Standover height
694,0
690,0
711,0
706,0
710,0
704,0
708,0
703,0
708,0
703,0
x
Bottom bracket height
338,0
334,0
338,0
334,0
338,0
334,0
338,0
334,0
338,0
334,0
y
Front center
699,0
699,0
733,0
733,0
764,0
764,0
795,0
795,0
826,0
826,0
