Santa Cruz 5010 X01 / Carbon CC / 27.5 2019

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

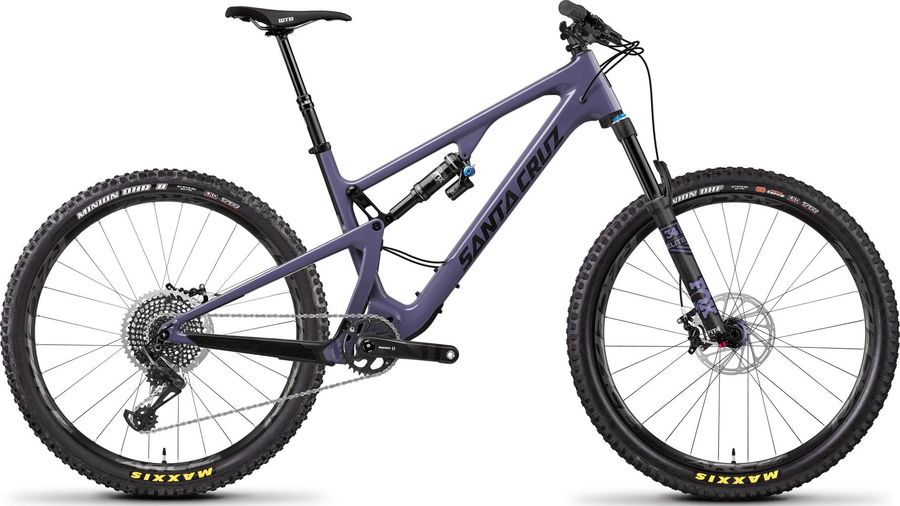

Santa Cruz 5010 X01 / Carbon CC / 27.5 2019

About the Santa Cruz 5010 X01 / Carbon CC / 27.5 2019

The Santa Cruz 5010 X01 / Carbon CC / 27.5 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz 5010 X01 / Carbon CC / 27.5 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Race Face Aeffect R 50mm
Saddle
WTB Silverado Team Saddle
Headset
Cane Creek 40 IS Integrated Headset
Seatpost
RockShox Reverb Stealth 31.6
Handlebar
Santa Cruz Bicycles AM Carbon Bar 35x760
Discs
Avid Centerline 180mm
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM X1 Eagle Carbon 148 DUB, 32t - 170mm (XS-S), 175mm (M-XL)
Shifter
SRAM X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
5010 X01 / Carbon CC / 27.5
Rear suspension
Fox DPX2 Performance Elite
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Race Face ARC Offset 35 27.5" Rims
Tires
Maxxis Minion DHF, 27.5"x2.6", 3C Terra EXO TR
Spokes
DT Competition Race (28)
Rear hub
DT 350 148x12 28h XD
Front hub
DT 350 15x110 28H

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
b
Seat tube angle
75,2º
74,9º
75,2º
74,9º
75,2º
74,9º
75,2º
74,9º
75,2º
74,9º
c
Top tube length
542,0
543,0
578,0
579,0
602,0
602,0
624,0
625,0
664,0
665,0
d
Head tube length
100,0
100,0
120,0
120,0
130,0
130,0
140,0
140,0
170,0
170,0
e
Head tube angle
66,5º
66,2º
66,5º
66,2º
66,5º
66,2º
66,5º
66,2º
66,5º
66,2º
f
Rake
48,0
47,0
46,0
46,0
46,0
46,0
46,0
46,0
46,0
46,0
g
Trail
102,0
105,0
104,0
107,0
104,0
107,0
104,0
107,0
104,0
107,0
h
Wheelbase
1110,0
1110,0
1146,0
1147,0
1170,0
1171,0
1194,0
1195,0
1236,0
1237,0
i
Chainstay length
429,0
430,0
429,0
430,0
429,0
430,0
429,0
430,0
429,0
430,0
j
Bottom bracket drop
20,0
24,0
20,0
24,0
20,0
24,0
20,0
24,0
20,0
24,0
k
Stack height
574,0
577,0
593,0
595,0
602,0
604,0
611,0
613,0
638,0
640,0
l
Reach
394,0
391,0
424,0
421,0
444,0
441,0
464,0
461,0
494,0
491,0
m
Standover height
694,0
688,0
714,0
708,0
717,0
711,0
717,0
712,0
716,0
711,0
x
Bottom bracket height
334,0
330,0
334,0
330,0
334,0
330,0
334,0
330,0
334,0
330,0
y
Front center
679,0
679,0
717,0
717,0
741,0
741,0
765,0
765,0
807,0
807,0
