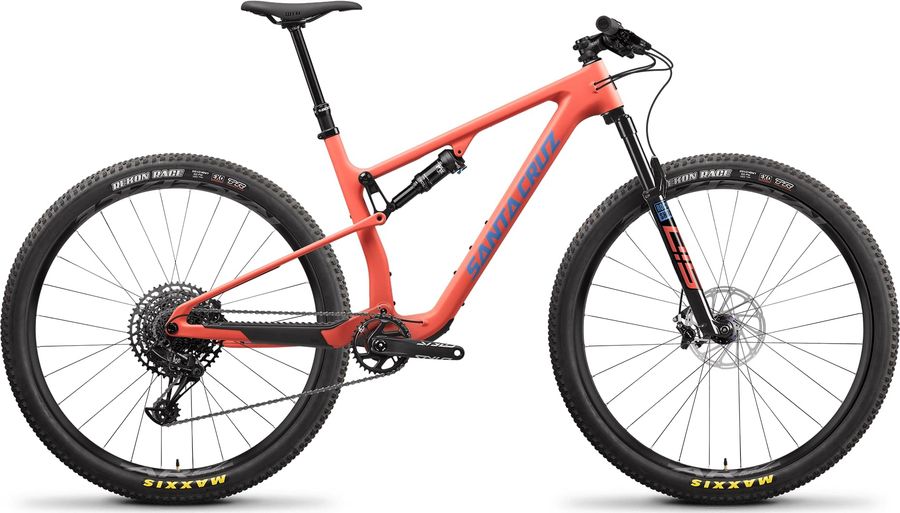

Santa Cruz Blur R / TR / Carbon C / 29 2022

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
100mm
Santa Cruz Blur R / TR / Carbon C / 29 2022

About the Santa Cruz Blur R / TR / Carbon C / 29 2022

The Santa Cruz Blur R / TR / Carbon C / 29 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Blur R / TR / Carbon C / 29 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
ESI Chunky Grips
Components
Steam
RaceFace Ride
Saddle
WTB Silverado Pro
Headset
Cane Creek 10 IS Integrated Headset
Seatpost
SDG Tellis Dropper, 31.6
Handlebar
RaceFace Ride
Discs
Avid Centerline 180mm
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM Stylo 148 DUB 34t
Shifter
SRAM NX Eagle, 12spd
Bottom bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Blur R / TR / Carbon C / 29
Front suspension
RockShox SID RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RL-B2
Name
SID RL
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Rear suspension
Fox Float DPS Performance
Wheels
Rims
RaceFace AR Offset 27 29"
Tires
Front: Maxxis Rekon Race, 29"x2.4WT, 3C, EXO, Rear: Maxxis Rekon Race, 29"x2.4WT, 3C, EXO
Spokes
Sapim Race
Rear hub
SRAM MTH 746, 12x148, 32h
Front hub
SRAM MTH 716, 15x110, Torque Cap, 32h

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
430,0
470,0
520,0
b
Seat tube angle
75,1º
75,0º
74,9º
74,8º
c
Top tube length
573,0
602,0
626,0
657,0
d
Head tube length
90,0
100,0
110,0
125,0
e
Head tube angle
67,1º
67,1º
67,1º
67,1º
f
Rake
46,0
45,0
44,0
44,0
g
Trail
108,0
109,0
110,0
110,0
h
Wheelbase
1131,0
1162,0
1188,0
1221,0
i
Chainstay length
436,0
438,0
441,0
443,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
592,0
602,0
612,0
626,0
l
Reach
417,0
443,0
463,0
488,0
m
Standover height
749,0
751,0
750,0
755,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
695,0
724,0
747,0
778,0
