Santa Cruz Blur X01 / AXS / RSV / Carbon CC / 29 2022

MTB Cross Country
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

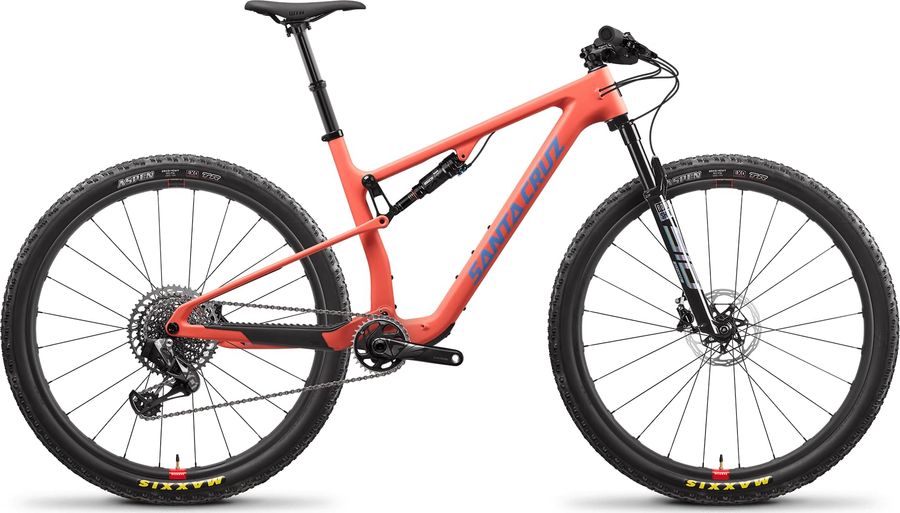

Santa Cruz Blur X01 / AXS / RSV / Carbon CC / 29 2022

About the Santa Cruz Blur X01 / AXS / RSV / Carbon CC / 29 2022

The Santa Cruz Blur X01 / AXS / RSV / Carbon CC / 29 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Blur X01 / AXS / RSV / Carbon CC / 29 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
SRAM Twistlock
Components
Steam
Syntace LiteForce
Saddle
WTB Silverado Medium Ti Fusion Saddle or WTB Volt
Headset
Cane Creek 40 IS Integrated Headset
Seatpost
FOX Transfer SL Performance Elite, 100mm, 31.6
Handlebar
Santa Cruz Bicycles Carbon Flat Bar
Discs
SRAM CLX Center Lock 160mm
Brakes
SRAM Level TLM Hydraulic 356 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-LVL-TLM-A1
Name
Level TLM
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
356
Drivetrain
Crankset
SRAM X1 Eagle Carbon 148 DUB, 34t
Shifter
SRAM GX AXS Shifter
Bottom bracket
SRAM DUB 68/73mm Threaded BB
Rear derailleur
SRAM X01 Eagle AXS 12s
Cage material
Aluminum
Color
Black, Grey, Lunar, Red
Max tooth
52
Model
RD-X0-1E-A1
Name
X01 Eagle AXS Derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Blur X01 / AXS / RSV / Carbon CC / 29
Rear suspension
RockShox SIDluxe Ultimate 231 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RLR
Eye to eye stroke
145x27.5(TR), 145x30(TR), 145x32.5(TR), 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x27.5, 170x30, 170x32.5, 170x35, 185x47.5(TR), 185x50(TR), 190x37.5, 190x40, 190x42.5, 190x45, 210x47.5, 210x50
Lockout force
380, 430
Model
RS-SIDL-ULT-A1
Name
SIDLuxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
RL 190x45 0 Tokens
Weight
231
Front suspension
RockShox SID SL Ultimate DebonAir 1326 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Blue
Damper type
Charger Race Day
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-ULT-C1
Name
SID SL Ultimate
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1326
Wheel size
29"
Wheels
Rims
Santa Cruz Reserve 28|XC Carbon Rim
Tires
Front: Maxxis Aspen, 29"x2.4WT, 3C, EXO, TR, Rear: Maxxis Aspen, 29"x2.4WT, 3C, EXO, TR
Spokes
Sapim D-light
Rear hub
Industry Nine 1/1, 148x12, XD, Centerlock, 28h
Front hub
Industry Nine 1/1, 110x15, Centerlock, 28h

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
430,0
470,0
520,0
b
Seat tube angle
75,1º
75,0º
74,9º
74,8º
c
Top tube length
573,0
602,0
626,0
657,0
d
Head tube length
90,0
100,0
110,0
125,0
e
Head tube angle
67,1º
67,1º
67,1º
67,1º
f
Rake
46,0
45,0
44,0
44,0
g
Trail
108,0
109,0
110,0
110,0
h
Wheelbase
1131,0
1162,0
1188,0
1221,0
i
Chainstay length
436,0
438,0
441,0
443,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
592,0
602,0
612,0
626,0
l
Reach
417,0
443,0
463,0
488,0
m
Standover height
749,0
751,0
750,0
755,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
695,0
724,0
747,0
778,0
