Santa Cruz Blur XX1 Reserve / Carbon CC / 29 2019

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
100mm
Rear travel
100mm

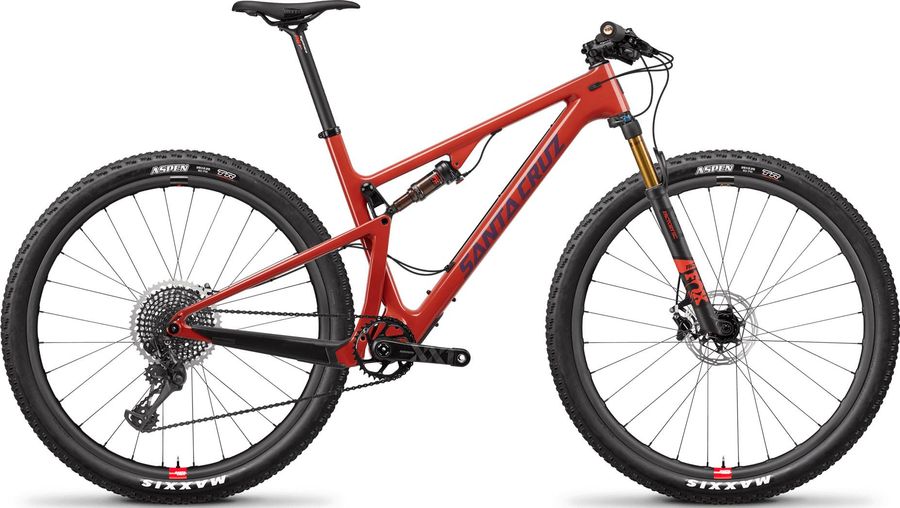

Santa Cruz Blur XX1 Reserve / Carbon CC / 29 2019

About the Santa Cruz Blur XX1 Reserve / Carbon CC / 29 2019

The Santa Cruz Blur XX1 Reserve / Carbon CC / 29 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Santa Cruz Blur XX1 Reserve / Carbon CC / 29 2019 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
ESI Chunky
Components
Steam
Syntace LiteForce
Saddle
WTB Silverado Carbon
Headset
Cane Creek AER IS Integrated Headset
Seatpost
Syntace P6 Carbon HiFlex 31.6
Handlebar
SCB XC Carbon Flat
Discs
SRAM CLX Center Lock, 160mm
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle DUB 34T (170mm S, 175mm M-XL)
Shifter
SRAM XX1 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Blur XX1 Reserve / Carbon CC / 29
Front suspension
Fox 32 Factory SC
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Santa Cruz Reserve 25 29" Carbon Rims
Tires
Maxxis Aspen, 29"x2.25", EXO TR
Spokes
DT Competition Race (28)
Rear hub
DT Swiss 240, 12x148, Centerlock, XD, 28h
Front hub
DT Swiss 240, 15x110, Centerlock, 28h

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
405,0
405,0
430,0
430,0
470,0
470,0
520,0
520,0
b
Seat tube angle
74,0º
73,5º
74,0º
73,5º
74,0º
73,5º
74,0º
73,5º
c
Top tube length
580,0
581,0
602,0
604,0
626,0
628,0
661,0
663,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
125,0
125,0
e
Head tube angle
69,0º
68,5º
69,0º
68,5º
69,0º
68,5º
69,0º
68,5º
f
Rake
53,0
52,0
53,0
53,0
53,0
53,0
53,0
53,0
g
Trail
87,0
92,0
87,0
91,0
87,0
91,0
87,0
91,0
h
Wheelbase
1118,0
1121,0
1141,0
1145,0
1165,0
1169,0
1,2e3
1204,0
i
Chainstay length
437,0
437,0
437,0
437,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
42,0
38,0
42,0
39,0
42,0
39,0
42,0
39,0
k
Stack height
584,0
587,0
593,0
597,0
603,0
606,0
617,0
620,0
l
Reach
425,0
420,0
445,0
440,0
465,0
460,0
495,0
490,0
m
Standover height
727,0
729,0
727,0
729,0
728,0
730,0
735,0
737,0
x
Bottom bracket height
328,0
332,0
328,0
332,0
328,0
332,0
328,0
331,0
y
Front center
681,0
684,0
704,0
708,0
728,0
731,0
763,0
767,0
