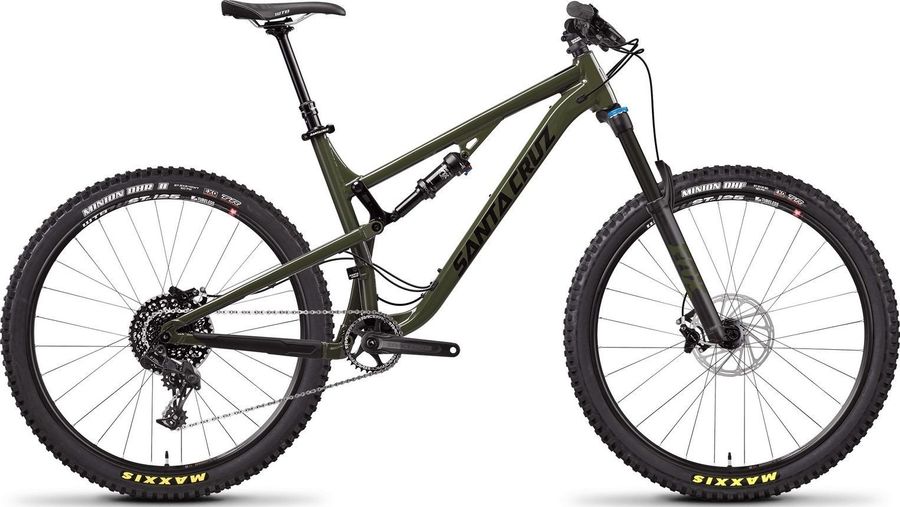

Santa Cruz Bronson Aluminum R 2018

MTB Enduro
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
Santa Cruz Bronson Aluminum R 2018

About the Santa Cruz Bronson Aluminum R 2018

The Santa Cruz Bronson Aluminum R 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Bronson Aluminum R 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale
Components
Steam
Race Face Ride, 50mm
Saddle
WTB Volt Race
Headset
Cane Creek 10 IS
Seatpost
RF Aeffect
Handlebar
Race Face Aeffect R, 35mm diameter, 780mm wide, 20mm rise
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
Race Face Aeffect
Shifter
SRAM NX, 11 speed
Bottom bracket
Standard, threaded
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Aluminum
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
WTB ST i25, 28 hole
Tires
Front: Maxxis Minion DHF, 2.3", EXO, TR, Rear: Maxxis Minion DHR 2, 2.3", EXO, TR
Spokes
Sapim secure lock, brass, 14mm
Rear hub
Front: Novatec D711, 15mm x 110mm, Rear: Novatec D462, 12mm x 148mm, BOOST
Front hub
Front: Novatec D711, 15mm x 110mm, Rear: Novatec D462, 12mm x 148mm, BOOST

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
420,0
460,0
495,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
568,0
591,0
613,0
646,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1136,0
1160,0
1184,0
1218,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
14,0
14,0
14,0
14,0
k
Stack height
581,0
590,0
600,0
609,0
l
Reach
400,0
420,0
440,0
470,0
m
Standover height
722,0
726,0
729,0
742,0
x
Bottom bracket height
341,0
341,0
341,0
341,0
y
Front center
-
-
-
-
