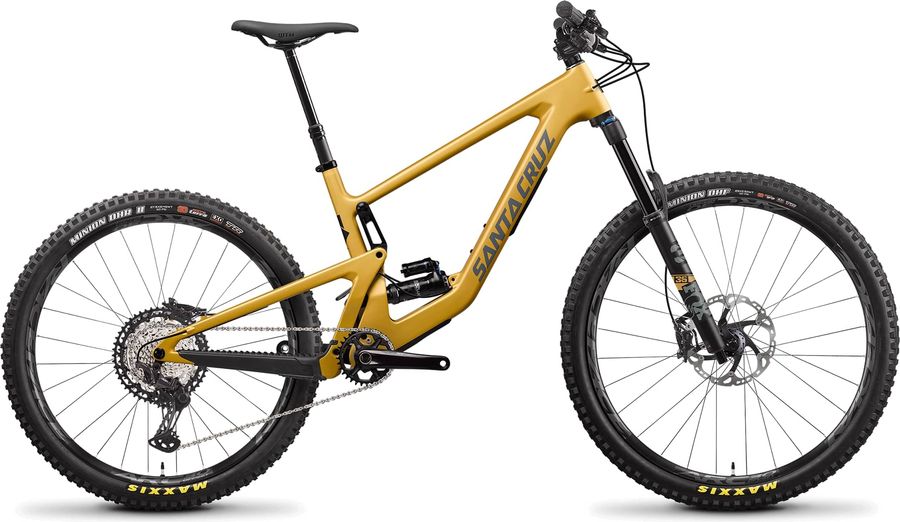

Santa Cruz Bronson XT / Carbon C / MX 2022

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
Santa Cruz Bronson XT / Carbon C / MX 2022

About the Santa Cruz Bronson XT / Carbon C / MX 2022

The Santa Cruz Bronson XT / Carbon C / MX 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Bronson XT / Carbon C / MX 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Components
Steam
Burgtec Enduro MK3
Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt
Headset
Cane Creek 40 IS Integrated Headset
Seatpost
RockShox Reverb Stealth, 31.6
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Discs
Shimano XT RT86, Ice Tech, 203mm/180mm
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano XT M8120 32t
Shifter
Shimano XT M8100, 12spd
Bottom bracket
Shimano XT 68/73mm Threaded BB
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Bronson XT / Carbon C / MX
Front suspension
Fox 36 Float Performance Elite
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
RaceFace ARC Offset 30 Rims
Tires
Front: Maxxis Minion DHF 29"x2.5, 3C, Maxx- Grip, EXO, TR (27.5” tire on size XS), Rear: Maxxis Minion DHR II 27.5"x2.4", 3C, EXO, TR
Spokes
Sapim Race
Rear hub
Industry Nine 1/1, 148x12, Microspline, 6 Bolt, 28h
Front hub
Industry Nine 1/1, 110x15, 6 Bolt, 28h

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
b
Seat tube angle
77,6º
76,9º
77,2º
76,7º
77,1º
76,6º
76,9º
76,5º
76,7º
76,4º
c
Top tube length
540,0
546,0
574,0
579,0
603,0
608,0
627,0
631,0
657,0
661,0
d
Head tube length
110,0
110,0
100,0
100,0
110,0
110,0
120,0
120,0
135,0
135,0
e
Head tube angle
64,7º
64,5º
64,7º
64,5º
64,7º
64,5º
64,7º
64,5º
64,7º
64,5º
f
Rake
37,0
38,0
45,0
46,0
45,0
46,0
46,0
46,0
45,0
46,0
g
Trail
127,0
127,0
127,0
128,0
127,0
128,0
126,0
128,0
127,0
128,0
h
Wheelbase
1153,0
1158,0
1192,0
1193,0
1225,0
1226,0
1253,0
1253,0
1288,0
1289,0
i
Chainstay length
431,0
436,0
435,0
436,0
439,0
440,0
442,0
443,0
446,0
447,0
j
Bottom bracket drop
10,0
13,0
29,0
32,0
29,0
32,0
29,0
32,0
29,0
32,0
k
Stack height
598,0
599,0
621,0
623,0
630,0
632,0
639,0
641,0
653,0
655,0
l
Reach
409,0
406,0
434,0
431,0
459,0
456,0
479,0
476,0
504,0
501,0
m
Standover height
705,0
702,0
713,0
710,0
735,0
731,0
733,0
730,0
732,0
729,0
x
Bottom bracket height
344,0
341,0
344,0
341,0
344,0
341,0
344,0
341,0
344,0
341,0
y
Front center
722,0
722,0
757,0
757,0
786,0
786,0
811,0
810,0
842,0
842,0
