BikeWise

Santa Cruz Bronson XX1 / AXS / RSV / Carbon CC / MX 2022

MTB Enduro
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
Santa Cruz Bronson XX1 / AXS / RSV / Carbon CC / MX 2022

About the Santa Cruz Bronson XX1 / AXS / RSV / Carbon CC / MX 2022

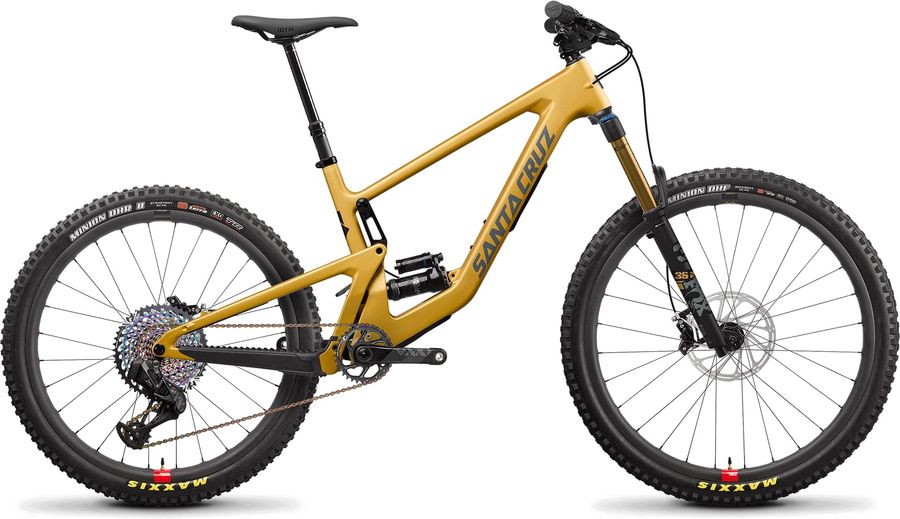

The Santa Cruz Bronson XX1 / AXS / RSV / Carbon CC / MX 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Bronson XX1 / AXS / RSV / Carbon CC / MX 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Components
Steam
i9 A35
Saddle
WTB Silverado Medium Ti Fusion Saddle or WTB Volt
Headset
Chris King DropSet 3 Integrated Headset
Seatpost
RockShox Reverb Stealth, 31.6
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Discs
Avid Centerline 200mm/180mm
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM XX1 Eagle AXS 148 DUB 32t
Shifter
SRAM AXS Paddle Shifter
Bottom bracket
SRAM DUB 68/73mm Threaded BB
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Bronson XX1 / AXS / RSV / Carbon CC / MX
Front suspension
Fox 36 Float Factory
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
Santa Cruz Reserve 30 V2 Carbon Rims
Tires
Maxxis Minion DHR II 27.5"x2.4", 3C, EXO, TR
Spokes
Sapim D-light
Rear hub
i9 Hydra, 12x148, XD, 28h
Front hub
i9 Hydra, 15x110, 28h

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
b
Seat tube angle
77,6º
76,9º
77,2º
76,7º
77,1º
76,6º
76,9º
76,5º
76,7º
76,4º
c
Top tube length
540,0
546,0
574,0
579,0
603,0
608,0
627,0
631,0
657,0
661,0
d
Head tube length
110,0
110,0
100,0
100,0
110,0
110,0
120,0
120,0
135,0
135,0
e
Head tube angle
64,7º
64,5º
64,7º
64,5º
64,7º
64,5º
64,7º
64,5º
64,7º
64,5º
f
Rake
37,0
38,0
45,0
46,0
45,0
46,0
46,0
46,0
45,0
46,0
g
Trail
127,0
127,0
127,0
128,0
127,0
128,0
126,0
128,0
127,0
128,0
h
Wheelbase
1153,0
1158,0
1192,0
1193,0
1225,0
1226,0
1253,0
1253,0
1288,0
1289,0
i
Chainstay length
431,0
436,0
435,0
436,0
439,0
440,0
442,0
443,0
446,0
447,0
j
Bottom bracket drop
10,0
13,0
29,0
32,0
29,0
32,0
29,0
32,0
29,0
32,0
k
Stack height
598,0
599,0
621,0
623,0
630,0
632,0
639,0
641,0
653,0
655,0
l
Reach
409,0
406,0
434,0
431,0
459,0
456,0
479,0
476,0
504,0
501,0
m
Standover height
705,0
702,0
713,0
710,0
735,0
731,0
733,0
730,0
732,0
729,0
x
Bottom bracket height
344,0
341,0
344,0
341,0
344,0
341,0
344,0
341,0
344,0
341,0
y
Front center
722,0
722,0
757,0
757,0
786,0
786,0
811,0
810,0
842,0
842,0
