Santa Cruz Chameleon D / Aluminum / 29 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

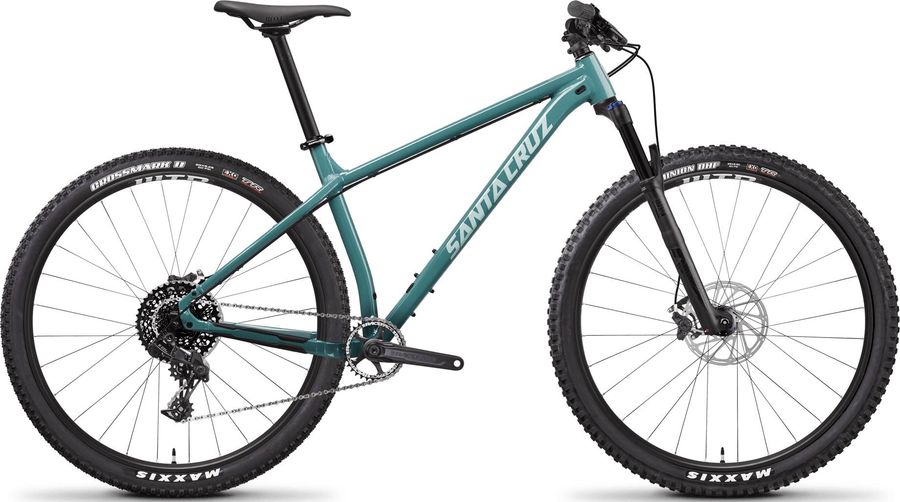

Santa Cruz Chameleon D / Aluminum / 29 2019

About the Santa Cruz Chameleon D / Aluminum / 29 2019

The Santa Cruz Chameleon D / Aluminum / 29 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Santa Cruz Chameleon D / Aluminum / 29 2019 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Race Face Ride Stem
Saddle
WTB Silverado Comp
Headset
Cane Creek 10 IS Integrated Headset
Seatpost
Race Face Ride
Handlebar
Race Face Ride
Discs
Avid Centerline 180mm
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Race Face Ride, 30t - 170mm (S), 175mm (M-XL)
Shifter
SRAM NX
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Chameleon D / Aluminum / 29
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
WTB ST i40 TCS 2.0 27.5 Rims
Tires
Maxxis Rekon 27.5x2.8 EXO TR
Spokes
DT Competition (32)
Rear hub
SRAM MTH 746, 12x148, 32h
Front hub
SRAM MTH 716, 15x110, Torque Cap, 32h

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL Low XL High
a
Seat tube length
390,0
390,0
420,0
420,0
450,0
450,0
490,0
490,0
b
Seat tube angle
72,7º
72,6º
72,7º
72,6º
72,7º
72,6º
72,6º
72,7º
c
Top tube length
603,0
605,0
630,0
630,0
653,0
654,0
687,0
691,0
d
Head tube length
95,0
100,0
100,0
100,0
110,0
110,0
120,0
120,0
e
Head tube angle
67,2º
67,1º
67,2º
67,1º
67,2º
67,1º
67,1º
67,2º
f
Rake
51,0
50,0
51,0
50,0
51,0
49,0
49,0
50,0
g
Trail
102,0
104,0
102,0
104,0
102,0
105,0
105,0
103,0
h
Wheelbase
1124,0
1126,0
1151,0
1151,0
1175,0
1174,0
1208,0
1208,0
i
Chainstay length
422,0
422,0
422,0
422,0
422,0
422,0
422,0
422,0
j
Bottom bracket drop
47,0
47,0
47,0
47,0
47,0
47,0
47,0
47,0
k
Stack height
621,0
625,0
625,0
625,0
635,0
635,0
644,0
644,0
l
Reach
418,0
418,0
443,0
443,0
463,0
463,0
493,0
493,0
m
Standover height
700,0
693,0
716,0
709,0
738,0
726,0
745,0
753,0
x
Bottom bracket height
314,0
315,0
314,0
315,0
314,0
315,0
315,0
314,0
y
Front center
704,0
707,0
731,0
732,0
755,0
756,0
790,0
789,0
