Santa Cruz Chameleon S / Aluminum / 29 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

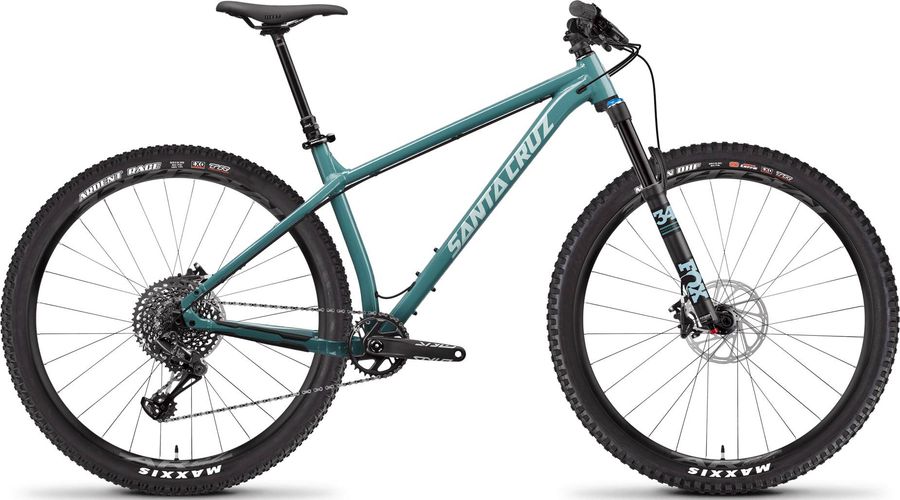

Santa Cruz Chameleon S / Aluminum / 29 2019

About the Santa Cruz Chameleon S / Aluminum / 29 2019

The Santa Cruz Chameleon S / Aluminum / 29 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Chameleon S / Aluminum / 29 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Race Face Aeffect R 50mm
Saddle
WTB Silverado Pro
Headset
Cane Creek 40 IS Integrated Headset
Seatpost
RockShox Reverb Stealth 31.6
Handlebar
Race Face Ride
Discs
Avid Centerline 180mm
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM Stylo 7k 148 DUB, 30t - 170mm (S), 175mm (M-XL)
Shifter
SRAM GX Eagle
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Chameleon S / Aluminum / 29
Front suspension
Fox 34 Float Performance
Wheels
Rims
Race Face AR Offset 40 27.5" Rims
Tires
Maxxis Rekon 27.5x2.8 EXO 3C TR
Spokes
DT Competition (32)
Rear hub
DT 370 12x148 32H
Front hub
DT 370 15x110 32H

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL Low XL High
a
Seat tube length
390,0
390,0
420,0
420,0
450,0
450,0
490,0
490,0
b
Seat tube angle
72,7º
72,6º
72,7º
72,6º
72,7º
72,6º
72,6º
72,7º
c
Top tube length
603,0
605,0
630,0
630,0
653,0
654,0
687,0
691,0
d
Head tube length
95,0
100,0
100,0
100,0
110,0
110,0
120,0
120,0
e
Head tube angle
67,2º
67,1º
67,2º
67,1º
67,2º
67,1º
67,1º
67,2º
f
Rake
51,0
50,0
51,0
50,0
51,0
49,0
49,0
50,0
g
Trail
102,0
104,0
102,0
104,0
102,0
105,0
105,0
103,0
h
Wheelbase
1124,0
1126,0
1151,0
1151,0
1175,0
1174,0
1208,0
1208,0
i
Chainstay length
422,0
422,0
422,0
422,0
422,0
422,0
422,0
422,0
j
Bottom bracket drop
47,0
47,0
47,0
47,0
47,0
47,0
47,0
47,0
k
Stack height
621,0
625,0
625,0
625,0
635,0
635,0
644,0
644,0
l
Reach
418,0
418,0
443,0
443,0
463,0
463,0
493,0
493,0
m
Standover height
700,0
693,0
716,0
709,0
738,0
726,0
745,0
753,0
x
Bottom bracket height
314,0
315,0
314,0
315,0
314,0
315,0
315,0
314,0
y
Front center
704,0
707,0
731,0
732,0
755,0
756,0
790,0
789,0
