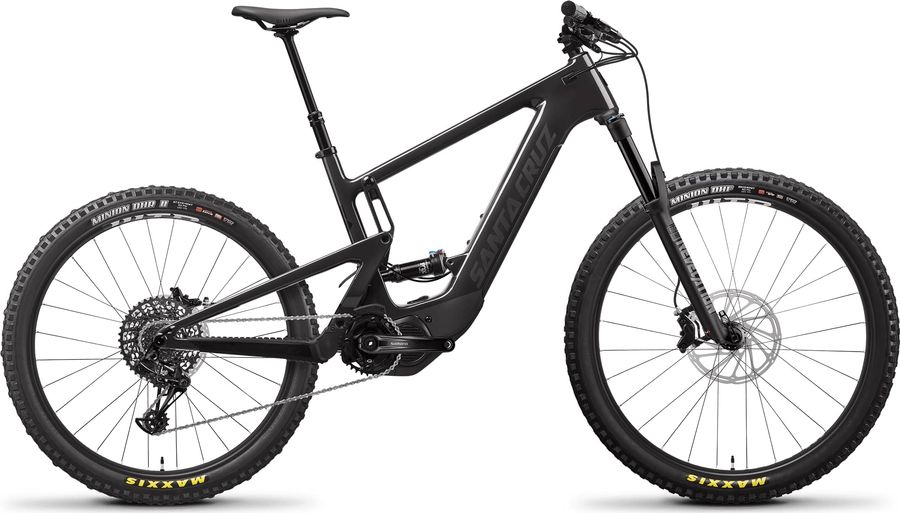

Santa Cruz Heckler R / Carbon CC / MX 2022
The Santa Cruz Heckler R / Carbon CC / MX 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm
About the Santa Cruz Heckler R / Carbon CC / MX 2022
The Santa Cruz Heckler R / Carbon CC / MX 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Santa Cruz Palmdale Grips
|
|---|---|
|
Remote
|
Shimano E7000 Mode Switch
|
|
Steam
|
e.13 Base
|
|---|---|
|
Saddle
|
WTB Silverado Race Saddle
|
|
Battery
|
Shimano 504Wh Integrated
|
|
Charger
|
Shimano Battery Charger
|
|
Headset
|
Cane Creek 10 IS Integrated Headset
|
|
Seatpost
|
SDG Tellis Dropper, 31.6
|
|
Handlebar
|
E13 TRS Base
|
|
Discs
|
Avid Centerline 200mm
|
|
Brakes
|
SRAM Guide RE
Hydraulic
415 g
|
|
|
|
|
Crankset
|
Shimano E8000 Crank Arms 165mm
|
|---|---|
|
Motor
|
Shimano Drive Unit DU-E7000
|
|
Shifter
|
SRAM NX Eagle Single Click, 12spd
|
|
Chain guide
|
E13 E-Spec+ AL
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM SX PG1210
|
|
Frame
|
Heckler R / Carbon CC / MX
|
|---|---|
|
Front suspension
|
RockShox Revelation RC
DebonAir
|
|
|
|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Rims
|
WTB ST i30 TCS 2.0 29" Rim (F) / WTB ST i30 TCS 2.0 27.5" Rim (R)
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF 29"x2.5, 3C, MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C, EXO+
|
|
Spokes
|
Sapim Race
|
|
Rear hub
|
SRAM MTH 746, 12x148, 32h
|
|
Front hub
|
SRAM MTH 716, 15x110, Torque Cap, 32h
|
Geometry
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
430,0
|
460,0
|
500,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
603,0
|
628,0
|
657,0
|
690,0
|
|
d
Head tube length
|
120,0
|
135,0
|
150,0
|
175,0
|
|
e
Head tube angle
|
64,6º
|
64,6º
|
64,6º
|
64,6º
|
|
f
Rake
|
44,0
|
44,0
|
43,0
|
43,0
|
|
g
Trail
|
129,0
|
129,0
|
130,0
|
130,0
|
|
h
Wheelbase
|
1213,0
|
1240,0
|
1271,0
|
1306,0
|
|
i
Chainstay length
|
450,0
|
450,0
|
450,0
|
450,0
|
|
j
Bottom bracket drop
|
24,6
|
24,6
|
24,6
|
24,6
|
|
k
Stack height
|
618,0
|
632,0
|
646,0
|
669,0
|
|
l
Reach
|
441,0
|
461,0
|
486,0
|
510,0
|
|
m
Standover height
|
749,0
|
747,0
|
762,0
|
744,0
|
|
x
Bottom bracket height
|
348,0
|
348,0
|
348,0
|
348,0
|
|
y
Front center
|
763,0
|
790,0
|
821,0
|
865,0
|
