Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2022

E-Bike
MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
140mm

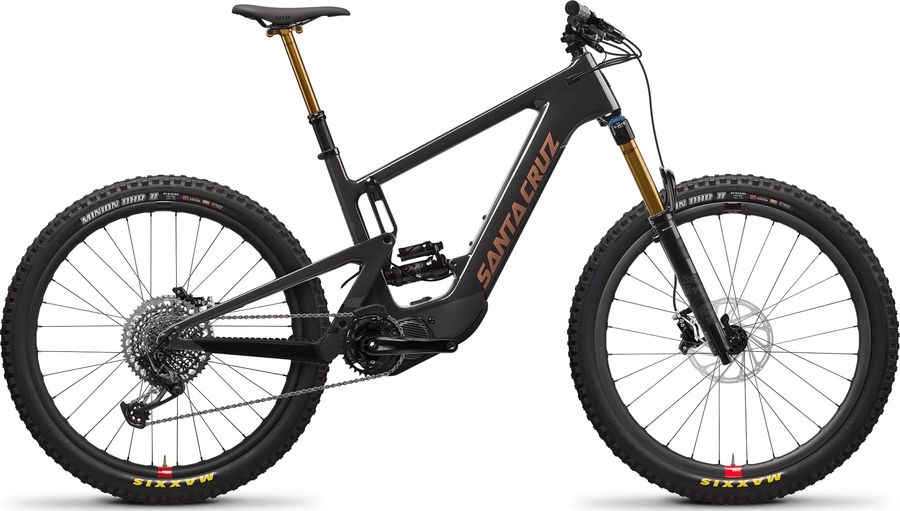

Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2022

About the Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2022

The Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Remote
Shimano Display Unit SC-EM800
Components
Steam
Burgtec Enduro MK3 42mm
Saddle
WTB Silverado Team Saddle
Battery
Shimano 504Wh Integrated
Charger
Shimano Battery Charger
Headset
Cane Creek 40 IS Integrated Headset
Seatpost
Fox Transfer Factory
Handlebar
Santa Cruz Bicycles Carbon Di2 Riser
Discs
Avid Centerline 200mm
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Shimano EM900 HollowTech Crank Arms, 165mm
Motor
Shimano Drive Unit DU-EP800
Shifter
SRAM X01 Eagle Single Click, 12spd
Chain guide
E13 E-Spec+ AL
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Heckler X01 RSV / Carbon CC / 27.5
Front suspension
Fox 36 Float Factory
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
Reserve DH 27.5" Carbon
Tires
Front: Maxxis Minion DHR II, 27.5x2.6 EXO+ TR, Rear: Maxxis Minion DHR II, 27.5x2.6 EXO+ TR
Spokes
Sapim D-light
Rear hub
DT Swiss 350, 12x148, XD, 32h
Front hub
DT Swiss 350, 15x110, 28h

Geometry

Size SM MD LG XL XXL
a
Seat tube length
390,0
405,0
430,0
460,0
500,0
b
Seat tube angle
76,2º
76,1º
76,0º
75,9º
75,4º
c
Top tube length
579,0
602,0
626,0
657,0
689,0
d
Head tube length
110,0
120,0
135,0
150,0
175,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
65,5º
f
Rake
46,0
46,0
46,0
46,0
47,0
g
Trail
111,0
111,0
111,0
111,0
110,0
h
Wheelbase
1194,0
1218,0
1244,0
1275,0
1311,0
i
Chainstay length
452,0
452,0
452,0
452,0
452,0
j
Bottom bracket drop
13,0
13,0
13,0
13,0
13,0
k
Stack height
604,0
613,0
627,0
641,0
662,0
l
Reach
432,0
452,0
472,0
497,0
522,0
m
Standover height
727,0
752,0
750,0
748,0
748,0
x
Bottom bracket height
346,0
346,0
346,0
346,0
346,0
y
Front center
742,0
766,0
792,0
823,0
859,0
