Santa Cruz Highball 27.5 C R 2018

MTB Cross Country
Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

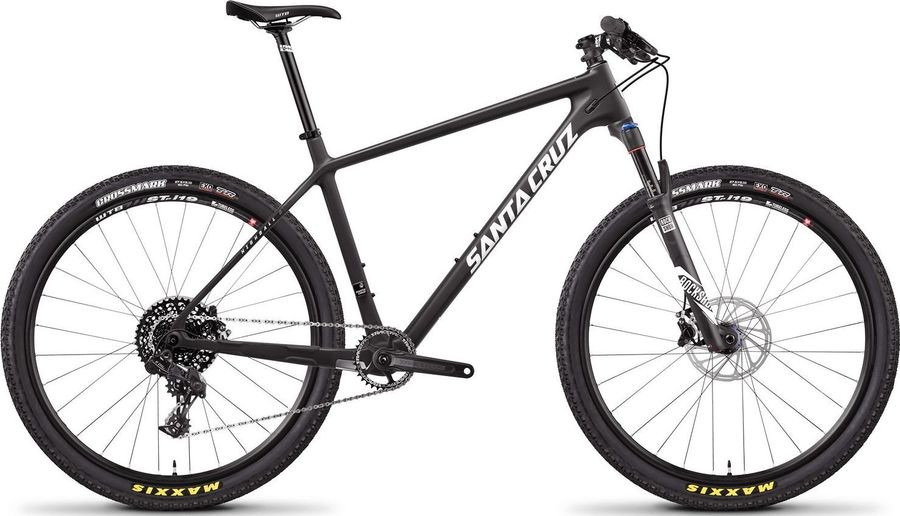

Santa Cruz Highball 27.5 C R 2018

About the Santa Cruz Highball 27.5 C R 2018

The Santa Cruz Highball 27.5 C R 2018 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 e hydraulic disc brakes.

Features

The Santa Cruz Highball 27.5 C R 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale, lock-on
Components
Steam
Race Face Ride, 50mm
Saddle
WTB Volt Race
Headset
Cane Creek 10, IS
Seatpost
Race Face Ride
Handlebar
Race Face Evolve, 31.8mm diameter, 720mm width, flat
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
Race Face Aeffect
Shifter
SRAM NX, 11-speed
Bottom bracket
SRAM GXP Team
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM NX
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
WTB STP i19, 28 hole
Tires
Front: Maxxis Crossmark, 2.1", DC, EXO, TR, front and rear
Spokes
DT Swiss Competition (28)
Rear hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 142mm, XD driver, 28 hole
Front hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 142mm, XD driver, 28 hole

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
483,0
533,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
581,0
606,0
631,0
657,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1075,0
1101,0
1127,0
1153,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
41,0
41,0
41,0
41,0
k
Stack height
582,0
591,0
601,0
610,0
l
Reach
399,0
421,0
444,0
466,0
m
Standover height
725,0
741,0
765,0
802,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
-
-
-
-
