Santa Cruz Highball 27.5 C R2x 2017

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail

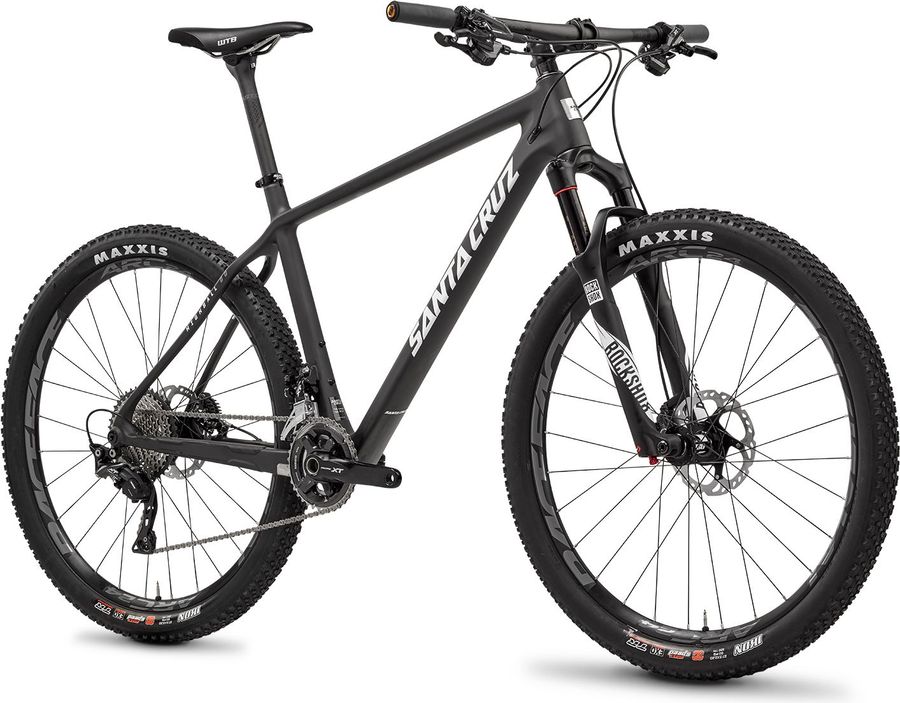

Santa Cruz Highball 27.5 C R2x 2017

About the Santa Cruz Highball 27.5 C R2x 2017

The Santa Cruz Highball 27.5 C R2x 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and tubeless ready.

Features

The Santa Cruz Highball 27.5 C R2x 2017 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
ESI Racer's Edge
Components
Steam
Syntace F109
Saddle
WTB Silverado SLT
Headset
Cane Creek 110, Integrated
Seatpost
Syntace P6, 27.2x400mm
Handlebar
Santa Cruz Carbon Flat Bar; 31.8mm clamp, 750mm
Discs
Avid Centerline; 160mm
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle, 32 Tooth
Shifter
SRAM XX1 Eagle
Bottom bracket
Included w/ crankset
Front derailleur
Shimano XT M8025
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Carbon CC
Front suspension
RockShox SID RLC Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger 2
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-SID-RLC-A2
Name
SID RLC
Spring
Solo Air
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 27.5" B, 29", 29" B
Wheels
Rims
Race Face ARC 24; 28h
Tires
Maxxis Ikon 27.5x2.2, Tubeless Ready
Spokes
DT Swiss Competition Double-Butted
Rear hub
Industry Nine Torch; 142x12mm
Front hub
Industry Nine Torch 110x15

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
483,0
533,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
581,0
606,0
631,0
657,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
44,0
45,0
44,0
44,0
g
Trail
89,0
88,0
89,0
89,0
h
Wheelbase
1075,0
1101,0
1127,0
1153,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
582,0
591,0
601,0
610,0
l
Reach
399,0
421,0
444,0
466,0
m
Standover height
725,0
741,0
765,0
802,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
647,0
673,0
699,0
725,0
