Santa Cruz Hightower CC XX1 PLUS 2017

MTB Trail
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension

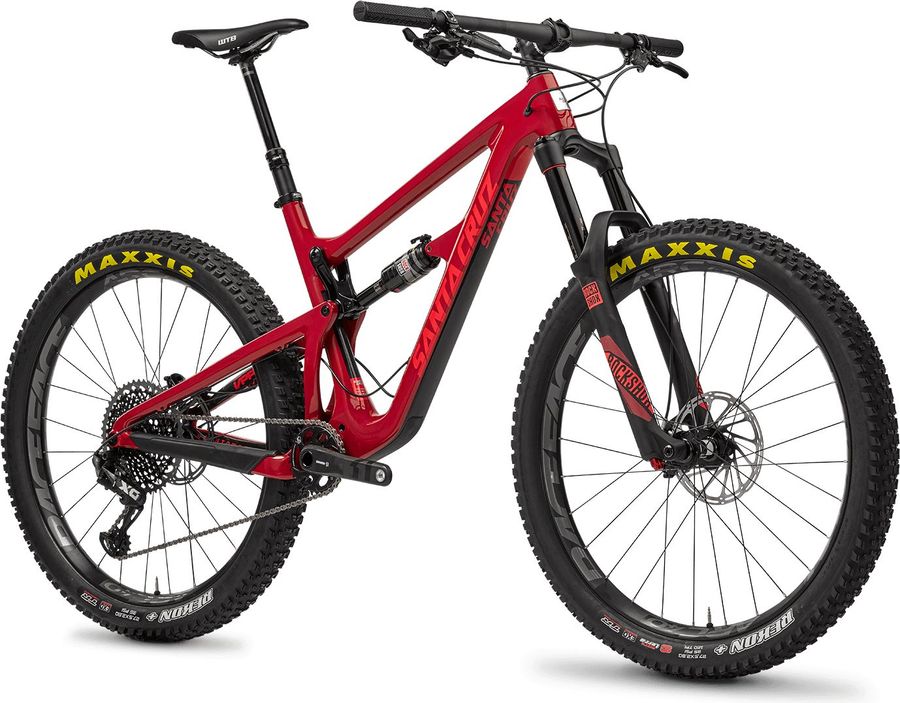

Santa Cruz Hightower CC XX1 PLUS 2017

About the Santa Cruz Hightower CC XX1 PLUS 2017

The Santa Cruz Hightower CC XX1 PLUS 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Hightower CC XX1 PLUS 2017 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Lock-on
Components
Steam
Easton Haven Aluminum 31.8mm clamp
Saddle
WTB Silverado SLT
Headset
Cane Creek 110, Integrated
Seatpost
Rock Shox Reverb Stealth; 150mm travel (M-L), 170mm (XL)
Handlebar
Santa Cruz Carbon Flat Bar, 31.8mm clamp, 780mm
Discs
Avid Centerline; 180mm
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
SRAM XX1 Eagle, 30 Tooth
Shifter
SRAM XX1 Eagle
Bottom bracket
Included w/ crankset
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Carbon CC
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Race Face ARC 40
Tires
Maxxis Rekon EXO 3C, Tubeless Ready, 27.5x2.8
Spokes
DT Swiss Competition Double-Butted
Rear hub
Industry Nine Torch 148x12
Front hub
Industry Nine Torch Torque Cap; 110x15mm

Geometry

Size MD LG XL
a
Seat tube length
420,0
450,0
490,0
b
Seat tube angle
74,3º
74,3º
74,3º
c
Top tube length
604,0
625,0
653,0
d
Head tube length
95,0
100,0
110,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
52,0
53,0
51,0
g
Trail
94,0
93,0
95,0
h
Wheelbase
1168,0
1190,0
1218,0
i
Chainstay length
438,0
438,0
438,0
j
Bottom bracket drop
33,0
33,0
33,0
k
Stack height
612,0
616,0
626,0
l
Reach
433,0
453,0
478,0
m
Standover height
713,0
716,0
723,0
x
Bottom bracket height
337,0
337,0
337,0
y
Front center
730,0
752,0
781,0
