Santa Cruz Hightower LT C S 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,56 kg
Front travel
150mm
Rear travel
150mm

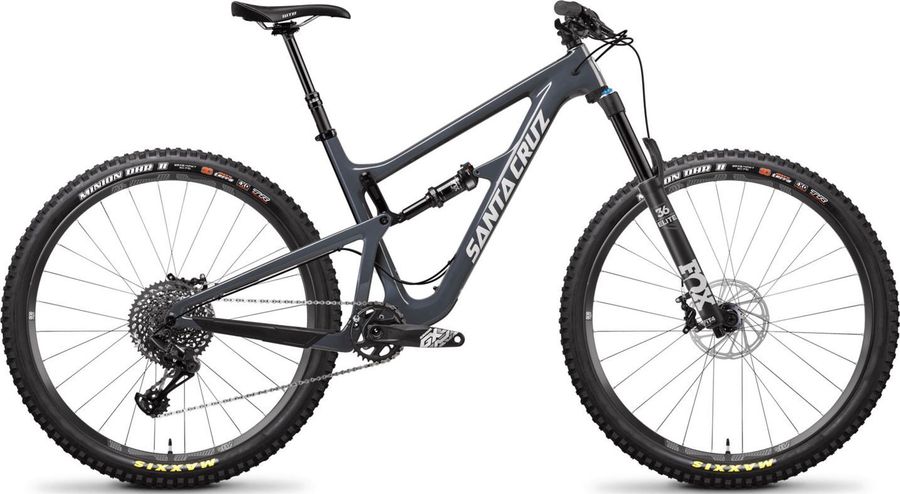

Santa Cruz Hightower LT C S 2018

About the Santa Cruz Hightower LT C S 2018

The Santa Cruz Hightower LT C S 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,56 kg.

Features

The Santa Cruz Hightower LT C S 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale
Components
Steam
Race Face Aeffect R, 50mm
Saddle
WTB Volt Race
Headset
Cane Creek 40 IS Integrated
Seatpost
RockShox Reverb Stealth
Handlebar
Race Face Aeffect R, 35x780mm, 20mm Rise
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM GX Eagle (170mm XS-S, 175mm M-XXL)
Shifter
SRAM GX Eagle
Bottom bracket
SRAM GXP Team, Standard Threaded
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
Fox 36 Performance
Rear suspension
Fox Float DPS Performance
Wheels
Rims
e*thirteen TRS, 32 Hole 30mm
Tires
Maxxis Minion DHR 29"x2.4" 3C EXO TR Front and Rear
Spokes
DT Competition (32) with Sapim Secure Lock AL Silver Nipples
Rear hub
Front: Novatec D641 Disc, 15x110mm, Rear: Novatec D642, 12x148mm (XD)
Front hub
Front: Novatec D641 Disc, 15x110mm, Rear: Novatec D642, 12x148mm (XD)

Geometry

Size LG SM MD XL XXL
a
Seat tube length
450,0
390,0
420,0
490,0
510,0
b
Seat tube angle
73,7º
73,7º
73,7º
73,7º
73,7º
c
Top tube length
524,0
576,0
604,0
652,0
691,0
d
Head tube length
100,0
90,0
95,0
110,0
130,0
e
Head tube angle
66,4º
66,4º
66,4º
66,4º
66,4º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1194,0
1145,0
1172,0
1222,0
1260,0
i
Chainstay length
437,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
36,0
36,0
36,0
36,0
36,0
k
Stack height
617,0
608,0
613,0
627,0
645,0
l
Reach
442,0
397,0
422,0
467,0
497,0
m
Standover height
712,0
709,0
709,0
719,0
726,0
x
Bottom bracket height
338,0
338,0
338,0
338,0
338,0
y
Front center
-
-
-
-
-
