Santa Cruz Hightower R / Aluminum / 29 2021

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
145mm

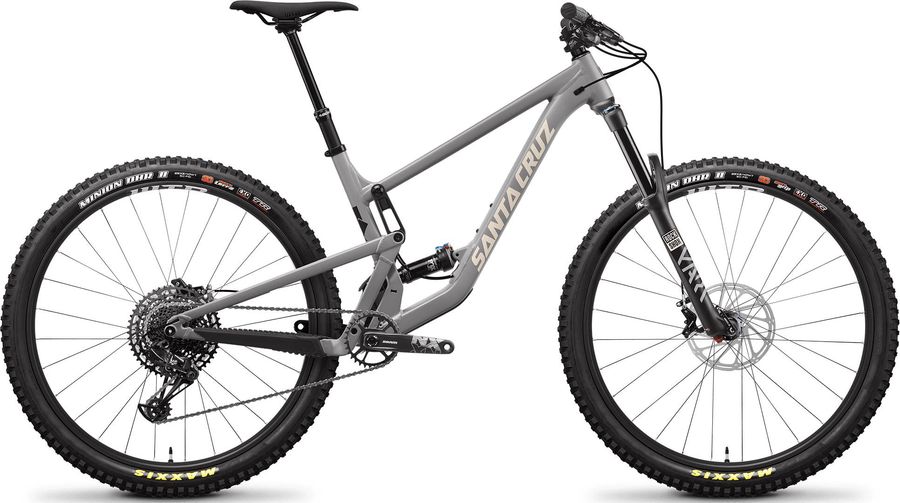

Santa Cruz Hightower R / Aluminum / 29 2021

About the Santa Cruz Hightower R / Aluminum / 29 2021

The Santa Cruz Hightower R / Aluminum / 29 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Hightower R / Aluminum / 29 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
RaceFace Ride
Saddle
WTB Silverado Race Saddle
Headset
Cane Creek 10 IS Integrated Headset
Seatpost
SDG Tellis
Handlebar
RaceFace Aeffect R
Discs
Avid Centerline 180mm
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
SRAM NX Eagle 148 DUB, 30t
Shifter
SRAM NX Eagle, 12spd
Bottom bracket
SRAM DUB 68/73mm
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Hightower R / Aluminum / 29
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
Fox Float DPS Performance
Wheels
Rims
WTB ST i30 TCS 2.0 29"
Tires
Maxxis Minion DHR II 29"x2.4", 3C, MaxxGRIP, EXO, TR
Spokes
Sapim Race
Rear hub
SRAM MTH 746, 12x148, 32h
Front hub
SRAM MTH 716, 15x110, Torque Cap, 32h

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low XXL High XXL Low
a
Seat tube length
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
500,0
500,0
b
Seat tube angle
77,1º
76,7º
77,0º
76,6º
76,8º
76,5º
76,6º
76,3º
76,3º
76,0º
c
Top tube length
563,0
564,0
591,0
593,0
615,0
616,0
642,0
643,0
676,0
677,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
130,0
130,0
155,0
155,0
e
Head tube angle
65,5º
65,2º
65,5º
65,2º
65,5º
65,2º
65,5º
65,2º
65,5º
65,2º
f
Rake
52,0
53,0
52,0
52,0
52,0
52,0
53,0
53,0
52,0
47,0
g
Trail
114,0
115,0
114,0
116,0
114,0
116,0
112,0
115,0
114,0
121,0
h
Wheelbase
1175,0
1176,0
1204,0
1205,0
1228,0
1229,0
1257,0
1258,0
1298,0
1293,0
i
Chainstay length
430,0
431,0
430,0
431,0
430,0
431,0
430,0
431,0
436,0
437,0
j
Bottom bracket drop
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
k
Stack height
598,0
600,0
607,0
609,0
616,0
618,0
634,0
636,0
657,0
659,0
l
Reach
425,0
422,0
450,0
447,0
470,0
467,0
490,0
487,0
515,0
512,0
m
Standover height
701,0
696,0
715,0
710,0
714,0
710,0
715,0
710,0
706,0
701,0
x
Bottom bracket height
344,0
340,0
344,0
340,0
344,0
340,0
344,0
340,0
344,0
340,0
y
Front center
745,0
745,0
774,0
774,0
798,0
798,0
827,0
827,0
862,0
862,0
