Santa Cruz Hightower S / Carbon C / 29 2021

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
145mm

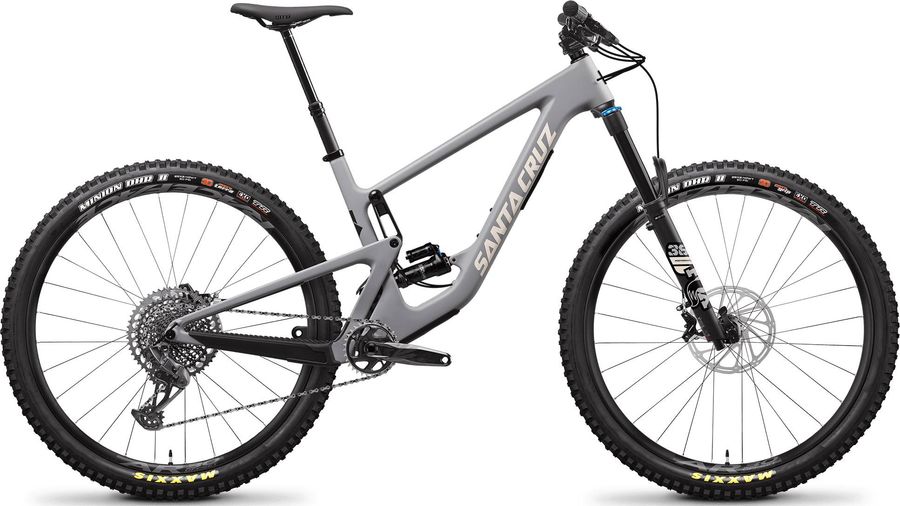

Santa Cruz Hightower S / Carbon C / 29 2021

About the Santa Cruz Hightower S / Carbon C / 29 2021

The Santa Cruz Hightower S / Carbon C / 29 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Hightower S / Carbon C / 29 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Burgtec Enduro MK3
Saddle
WTB Silverado Pro
Headset
Cane Creek 40 IS Integrated
Seatpost
RockShox Reverb Stealth
Handlebar
Burgtec Alloy
Discs
Avid Centerline 180mm
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM GX Eagle 148 DUB, 30t
Shifter
SRAM GX Eagle, 12spd
Bottom bracket
SRAM DUB 68/73mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Hightower S / Carbon C / 29
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Front suspension
Fox 36 Float Performance
Wheels
Rims
RaceFace AR Offset 30 29"
Tires
Maxxis Minion DHR II 29"x2.4", 3C, MaxxGRIP, EXO, TR
Spokes
Sapim Race
Rear hub
DT Swiss 370, 12x148, XD, 32h
Front hub
DT Swiss 370, 15x110, 32h

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low XXL High XXL Low
a
Seat tube length
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
500,0
500,0
b
Seat tube angle
77,1º
76,7º
77,0º
76,6º
76,8º
76,5º
76,6º
76,3º
76,3º
76,0º
c
Top tube length
563,0
564,0
591,0
593,0
615,0
616,0
642,0
643,0
676,0
677,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
130,0
130,0
155,0
155,0
e
Head tube angle
65,5º
65,2º
65,5º
65,2º
65,5º
65,2º
65,5º
65,2º
65,5º
65,2º
f
Rake
52,0
53,0
52,0
52,0
52,0
52,0
53,0
53,0
52,0
47,0
g
Trail
114,0
115,0
114,0
116,0
114,0
116,0
112,0
115,0
114,0
121,0
h
Wheelbase
1175,0
1176,0
1204,0
1205,0
1228,0
1229,0
1257,0
1258,0
1298,0
1293,0
i
Chainstay length
430,0
431,0
430,0
431,0
430,0
431,0
430,0
431,0
436,0
437,0
j
Bottom bracket drop
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
k
Stack height
598,0
600,0
607,0
609,0
616,0
618,0
634,0
636,0
657,0
659,0
l
Reach
425,0
422,0
450,0
447,0
470,0
467,0
490,0
487,0
515,0
512,0
m
Standover height
701,0
696,0
715,0
710,0
714,0
710,0
715,0
710,0
706,0
701,0
x
Bottom bracket height
344,0
340,0
344,0
340,0
344,0
340,0
344,0
340,0
344,0
340,0
y
Front center
745,0
745,0
774,0
774,0
798,0
798,0
827,0
827,0
862,0
862,0
