Santa Cruz Hightower XX1 Reserve / Carbon CC / 29 2019

MTB Trail
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
135mm
Santa Cruz Hightower XX1 Reserve / Carbon CC / 29 2019

About the Santa Cruz Hightower XX1 Reserve / Carbon CC / 29 2019

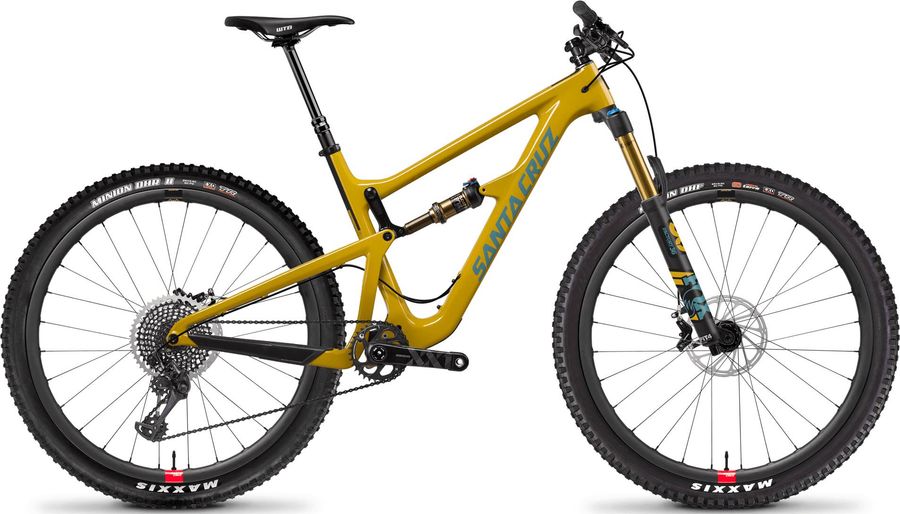

The Santa Cruz Hightower XX1 Reserve / Carbon CC / 29 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Hightower XX1 Reserve / Carbon CC / 29 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Race Face Turbine R 50mm
Saddle
WTB Silverado Team Saddle
Headset
Cane Creek 110 IS Integrated Headset
Seatpost
RockShox Reverb Stealth 31.6
Handlebar
SCB AM Flat Bar Carbon 31.8x780
Discs
Avid Centerline 180mm
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
SRAM XX1 Eagle 148 DUB, 30t - 170mm (XS-S), 175mm (M-XL)
Shifter
SRAM XX1 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Hightower XX1 Reserve / Carbon CC / 29
Front suspension
Fox 36 Float Factory
Rear suspension
Fox Float DPS Factory Kashima
Wheels
Rims
Santa Cruz Reserve 27 Carbon Rim - 28h
Tires
Maxxis Minion 29x2.3 DHF 3c EXO TR
Spokes
DT Competition Race (28)
Rear hub
I9 148x12 28H XD
Front hub
I9 15x110 28H

Geometry

Size SM MD LG XL XXL
a
Seat tube length
390,0
420,0
450,0
490,0
510,0
b
Seat tube angle
74,3º
74,3º
74,3º
74,3º
74,3º
c
Top tube length
581,0
608,0
629,0
657,0
692,0
d
Head tube length
90,0
95,0
100,0
110,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
52,0
52,0
53,0
51,0
54,0
g
Trail
102,0
102,0
101,0
104,0
100,0
h
Wheelbase
1145,0
1172,0
1194,0
1222,0
1262,0
i
Chainstay length
442,0
442,0
442,0
442,0
442,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
33,0
k
Stack height
611,0
616,0
620,0
630,0
648,0
l
Reach
412,0
437,0
457,0
482,0
512,0
m
Standover height
717,0
717,0
720,0
727,0
734,0
x
Bottom bracket height
337,0
337,0
337,0
337,0
337,0
y
Front center
703,0
730,0
752,0
781,0
818,0
