Santa Cruz Megatower R / Carbon C / 29 2019

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
160mm

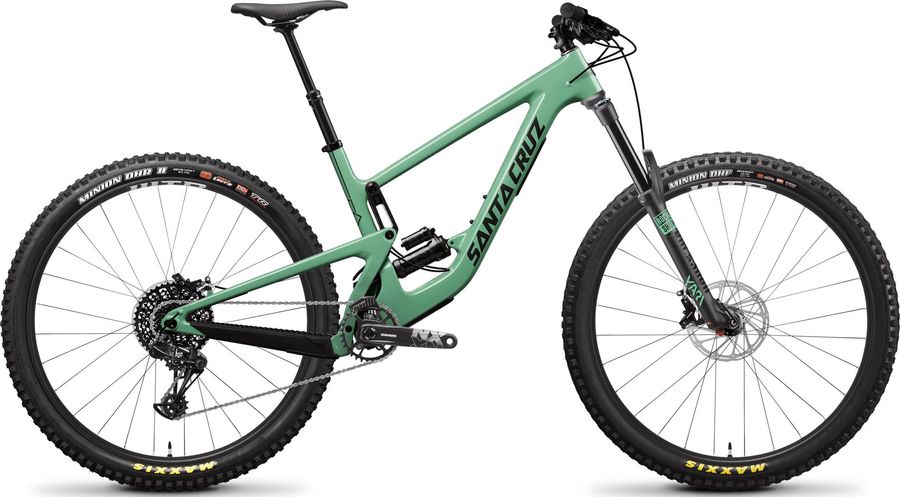

Santa Cruz Megatower R / Carbon C / 29 2019

About the Santa Cruz Megatower R / Carbon C / 29 2019

The Santa Cruz Megatower R / Carbon C / 29 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Megatower R / Carbon C / 29 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Race Face Chester 40mm
Saddle
WTB Silverado Race Saddle
Headset
Cane Creek 10 IS Integrated Headset
Seatpost
Race Face Aeffect, 31.6
Handlebar
Race Face Aeffect R
Discs
Avid Centerline 200mm
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SRAM NX Eagle 148 DUB, 30t - 170mm
Shifter
SRAM NX Eagle
Chain guide
E13 TRS Race SL ISCG05
Bottom bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Megatower R / Carbon C / 29
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB ST i29 TCS 2.0 29" Rims
Tires
Maxxis Minion DHF, 29"x2.5", 3C Silkshield
Spokes
DT Competition (28)
Rear hub
SRAM MTH 746, 12x148, 32h
Front hub
SRAM MTH 716, 15x110, Torque Cap, 32h

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low XXL High XXL Low
a
Seat tube length
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
500,0
500,0
b
Seat tube angle
76,8º
76,5º
76,7º
76,4º
76,6º
76,3º
76,3º
76,0º
76,0º
75,8º
c
Top tube length
564,0
565,0
593,0
594,0
616,0
617,0
643,0
645,0
677,0
679,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
130,0
130,0
155,0
155,0
e
Head tube angle
65,0º
64,7º
65,0º
64,7º
65,0º
64,7º
65,0º
64,7º
65,0º
64,7º
f
Rake
45,0
45,0
45,0
45,0
44,0
45,0
45,0
44,0
44,0
44,0
g
Trail
125,0
127,0
125,0
127,0
126,0
127,0
125,0
128,0
126,0
128,0
h
Wheelbase
1175,0
1176,0
1204,0
1205,0
1228,0
1229,0
1257,0
1257,0
1292,0
1293,0
i
Chainstay length
432,0
433,0
432,0
433,0
432,0
433,0
432,0
433,0
432,0
433,0
j
Bottom bracket drop
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
k
Stack height
604,0
606,0
613,0
615,0
622,0
624,0
640,0
642,0
663,0
665,0
l
Reach
422,0
419,0
447,0
444,0
467,0
464,0
487,0
484,0
512,0
509,0
m
Standover height
699,0
695,0
711,0
706,0
710,0
705,0
708,0
702,0
705,0
700,0
x
Bottom bracket height
343,0
340,0
343,0
340,0
343,0
340,0
343,0
340,0
343,0
340,0
y
Front center
743,0
743,0
772,0
772,0
796,0
796,0
825,0
825,0
860,0
860,0
