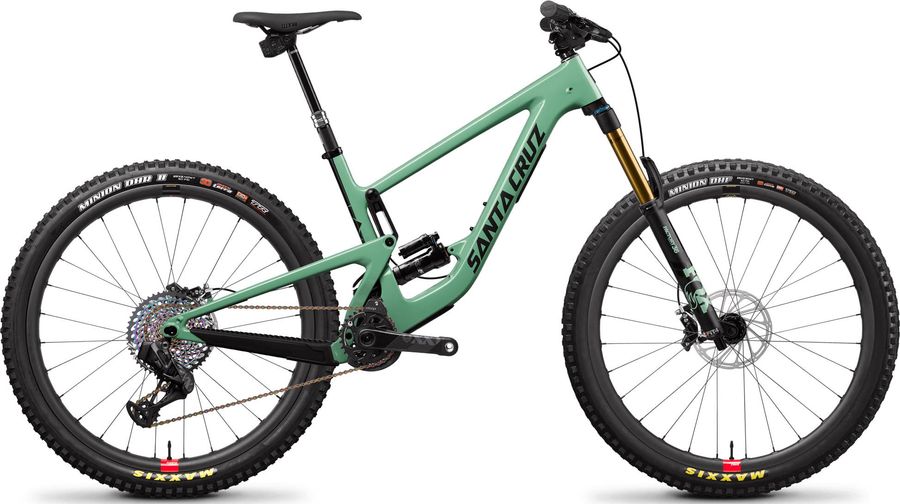

Santa Cruz Megatower XX1 AXS Reserve / Carbon CC / 29 2019

MTB Enduro
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
160mm
Santa Cruz Megatower XX1 AXS Reserve / Carbon CC / 29 2019

About the Santa Cruz Megatower XX1 AXS Reserve / Carbon CC / 29 2019

The Santa Cruz Megatower XX1 AXS Reserve / Carbon CC / 29 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Megatower XX1 AXS Reserve / Carbon CC / 29 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale Grips
Components
Steam
Race Face Turbine R 40mm
Saddle
WTB Silverado Team Saddle
Headset
Cane Creek 110 IS Integrated Headset
Seatpost
RockShox Reverb AXS 31.6
Handlebar
Santa Cruz Bicycles AM Carbon Bar 35x800
Discs
Avid Centerline 200mm
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM XX1 Eagle 148 DUB, 30t - 170mm
Shifter
SRAM XX1 Eagle AXS 12spd
Chain guide
MRP AMg V2 Alloy chainguide
Bottom bracket
SRAM DUB 68/73mm Threaded BB
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Megatower XX1 AXS Reserve / Carbon CC / 29
Rear suspension
RockShox Super Deluxe Coil Ultimate 406 g
Body eyelet
Bearing, No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLC-ULT-A2
Name
Super Deluxe Coil Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
406
Front suspension
Fox 36 Float Factory
Wheels
Rims
Santa Cruz Reserve 30 Carbon Rim - 29 28h
Tires
Maxxis Minion DHF, 29"x2.5", 3C EXO+
Spokes
DT Competition Race (28)
Rear hub
I9 148x12 28H XD
Front hub
I9 15x110 28H

Geometry

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low XXL High XXL Low
a
Seat tube length
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
500,0
500,0
b
Seat tube angle
76,8º
76,5º
76,7º
76,4º
76,6º
76,3º
76,3º
76,0º
76,0º
75,8º
c
Top tube length
564,0
565,0
593,0
594,0
616,0
617,0
643,0
645,0
677,0
679,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
130,0
130,0
155,0
155,0
e
Head tube angle
65,0º
64,7º
65,0º
64,7º
65,0º
64,7º
65,0º
64,7º
65,0º
64,7º
f
Rake
45,0
45,0
45,0
45,0
44,0
45,0
45,0
44,0
44,0
44,0
g
Trail
125,0
127,0
125,0
127,0
126,0
127,0
125,0
128,0
126,0
128,0
h
Wheelbase
1175,0
1176,0
1204,0
1205,0
1228,0
1229,0
1257,0
1257,0
1292,0
1293,0
i
Chainstay length
432,0
433,0
432,0
433,0
432,0
433,0
432,0
433,0
432,0
433,0
j
Bottom bracket drop
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
29,0
33,0
k
Stack height
604,0
606,0
613,0
615,0
622,0
624,0
640,0
642,0
663,0
665,0
l
Reach
422,0
419,0
447,0
444,0
467,0
464,0
487,0
484,0
512,0
509,0
m
Standover height
699,0
695,0
711,0
706,0
710,0
705,0
708,0
702,0
705,0
700,0
x
Bottom bracket height
343,0
340,0
343,0
340,0
343,0
340,0
343,0
340,0
343,0
340,0
y
Front center
743,0
743,0
772,0
772,0
796,0
796,0
825,0
825,0
860,0
860,0
