Santa Cruz Nomad C R 2018

MTB Downhill
Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,29 kg
Front travel
170mm
Rear travel
170mm

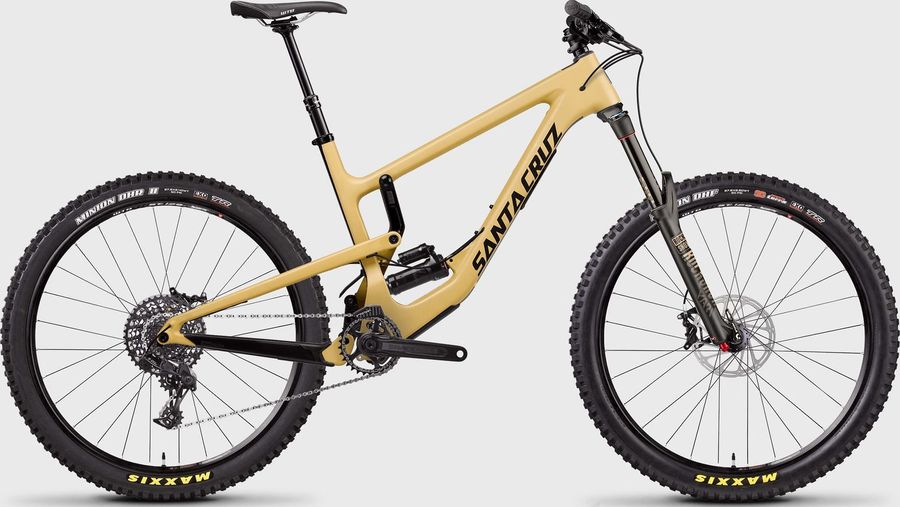

Santa Cruz Nomad C R 2018

About the Santa Cruz Nomad C R 2018

The Santa Cruz Nomad C R 2018 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,29 kg.

Features

The Santa Cruz Nomad C R 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale
Components
Steam
Race Face Ride - 50mm
Saddle
WTB Volt Race
Headset
Cane Creek 10 IS Integrated
Seatpost
Race Face Aefect - 125mm (XS- M), 150mm (L-XL)
Handlebar
Race Face Aefect R - 35mm x 780mm, 20mm Rise
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Race Face Aefect - 170mm
Shifter
SRAM NX 11-speed
Chain guide
e*thirteen TRS Race SL
Bottom bracket
73mm threaded, included with crankset
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
WTB ST i29 TCS
Tires
Front: Maxxis Minion DHF 3C EXO TR, 27.5" x 2.5? Rear: Maxxis Minion DHR II EXO TR, 27.5" x 2.4?
Spokes
DT Competition
Rear hub
Front: Novatec D711 - 15x110mm, Rear: Novatec D462 - 12x148mm (XD)
Front hub
Front: Novatec D711 - 15x110mm, Rear: Novatec D462 - 12x148mm (XD)

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
375,0
375,0
390,0
390,0
420,0
420,0
450,0
450,0
480,0
480,0
b
Seat tube angle
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
c
Top tube length
533,0
533,0
566,0
566,0
590,0
590,0
613,0
613,0
646,0
646,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
120,0
120,0
130,0
130,0
e
Head tube angle
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
f
Rake
-
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
-
h
Wheelbase
1127,0
1127,0
1161,0
1161,0
1186,0
1186,0
1210,0
1210,0
1244,0
1244,0
i
Chainstay length
423,0
423,0
423,0
423,0
423,0
423,0
423,0
423,0
423,0
423,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
k
Stack height
579,0
579,0
588,0
588,0
597,0
597,0
606,0
606,0
615,0
615,0
l
Reach
378,0
378,0
408,0
408,0
428,0
428,0
448,0
448,0
478,0
478,0
m
Standover height
696,0
696,0
698,0
698,0
714,0
714,0
712,0
712,0
710,0
710,0
x
Bottom bracket height
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
y
Front center
-
-
-
-
-
-
-
-
-
-
