Santa Cruz Nomad C S 2018

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,24 kg
Front travel
170mm
Rear travel
170mm

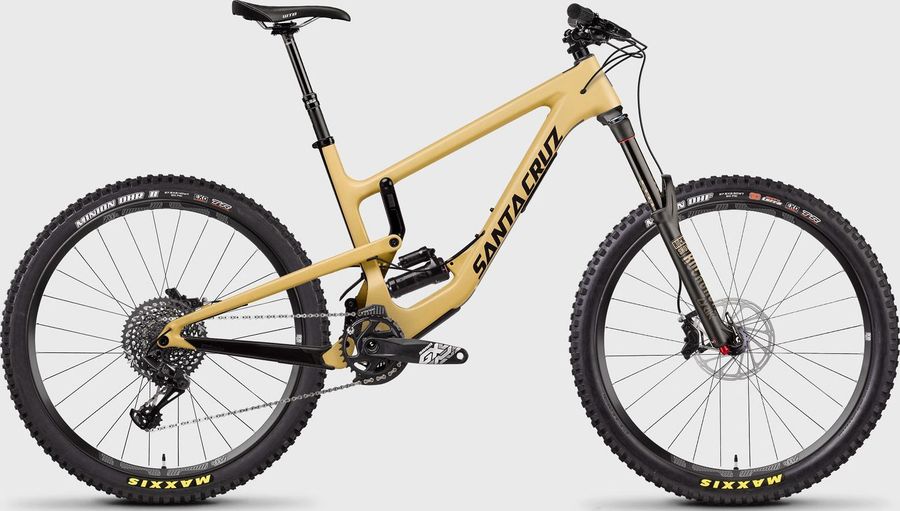

Santa Cruz Nomad C S 2018

About the Santa Cruz Nomad C S 2018

The Santa Cruz Nomad C S 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,24 kg.

Features

The Santa Cruz Nomad C S 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale
Components
Steam
Race Face Aefect R - 50mm
Saddle
WTB Volt Race
Headset
Cane Creek 40 IS Integrated
Seatpost
RockShox Reverb Stealth - 100mm (XS), 125mm (S), 150mm (M-XL)
Handlebar
Race Face Aefect R - 35mm x 780mm, 20mm Rise
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM GX Eagle - 170mm
Shifter
SRAM GX Eagle 12-speed
Chain guide
e*thirteen TRS + 1x Guide
Bottom bracket
73mm threaded, included with crankset
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
e*thirteen TRS 30mm - 32 hole
Tires
Front: Maxxis Minion DHF 3C EXO TR, 27.5" x 2.5? Rear: Maxxis Minion DHR II EXO TR, 27.5" x 2.4?
Spokes
DT Competition
Rear hub
Front: Novatec D641 - 15x110mm, Rear: Novatec D642 - 12x148mm (XD)
Front hub
Front: Novatec D641 - 15x110mm, Rear: Novatec D642 - 12x148mm (XD)

Geometry

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Seat tube length
375,0
375,0
390,0
390,0
420,0
420,0
450,0
450,0
480,0
480,0
b
Seat tube angle
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
74,1º
c
Top tube length
533,0
533,0
566,0
566,0
590,0
590,0
613,0
613,0
646,0
646,0
d
Head tube length
90,0
90,0
100,0
100,0
110,0
110,0
120,0
120,0
130,0
130,0
e
Head tube angle
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
64,6º
f
Rake
-
-
-
-
-
-
-
-
-
-
g
Trail
-
-
-
-
-
-
-
-
-
-
h
Wheelbase
1127,0
1127,0
1161,0
1161,0
1186,0
1186,0
1210,0
1210,0
1244,0
1244,0
i
Chainstay length
423,0
423,0
423,0
423,0
423,0
423,0
423,0
423,0
423,0
423,0
j
Bottom bracket drop
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
16,0
k
Stack height
579,0
579,0
588,0
588,0
597,0
597,0
606,0
606,0
615,0
615,0
l
Reach
378,0
378,0
408,0
408,0
428,0
428,0
448,0
448,0
478,0
478,0
m
Standover height
696,0
696,0
698,0
698,0
714,0
714,0
712,0
712,0
710,0
710,0
x
Bottom bracket height
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
339,0
y
Front center
-
-
-
-
-
-
-
-
-
-
