Santa Cruz Tallboy Aluminum R 2018

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

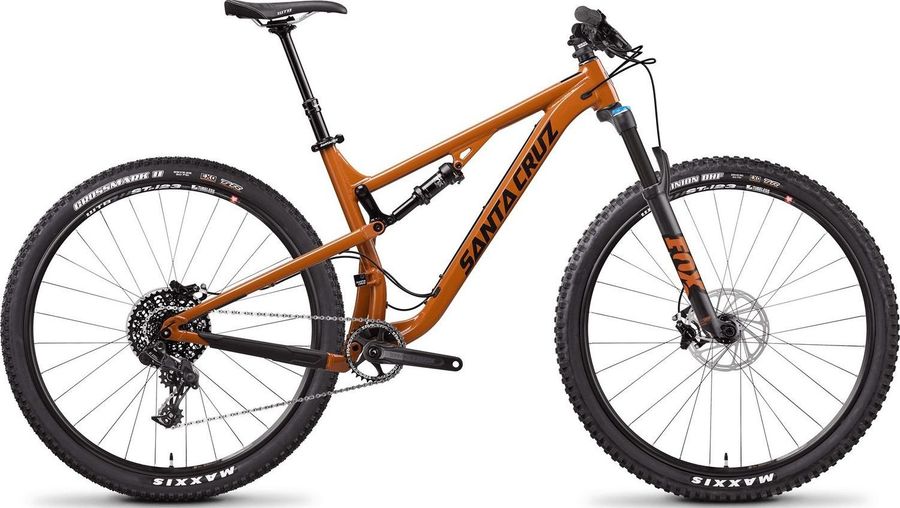

Santa Cruz Tallboy Aluminum R 2018

About the Santa Cruz Tallboy Aluminum R 2018

The Santa Cruz Tallboy Aluminum R 2018 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Tallboy Aluminum R 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale, lock-on
Components
Steam
Race Face Ride, 50mm
Saddle
WTB Volt Race
Headset
Cane Creek 10
Seatpost
Race Face Aeffect
Handlebar
Race Face Ride, 35mm diameter, 760mm wide
Brake lever
SRAM Level
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
Race Face Aeffect
Shifter
SRAM NX, 11 speed
Bottom bracket
threaded
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Aluminum
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
WTB ST i23 TCS
Tires
Front: Maxxis Crossmark II, 2.25", DC EXO TR, Rear: Maxxis Minion 2.3" DHF EXO TR
Spokes
DT Competition with Sapim secure lock brass nipples
Rear hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole
Front hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
420,0
450,0
480,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
581,0
610,0
630,0
660,0
d
Head tube length
90,0
100,0
110,0
120,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1123,0
1152,0
1172,0
1202,0
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
44,0
44,0
44,0
44,0
k
Stack height
601,0
610,0
610,0
624,0
l
Reach
412,0
437,0
457,0
482,0
m
Standover height
712,0
713,0
714,0
716,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
y
Front center
-
-
-
-
