Santa Cruz Tallboy Carbon C XE 2018

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
110mm

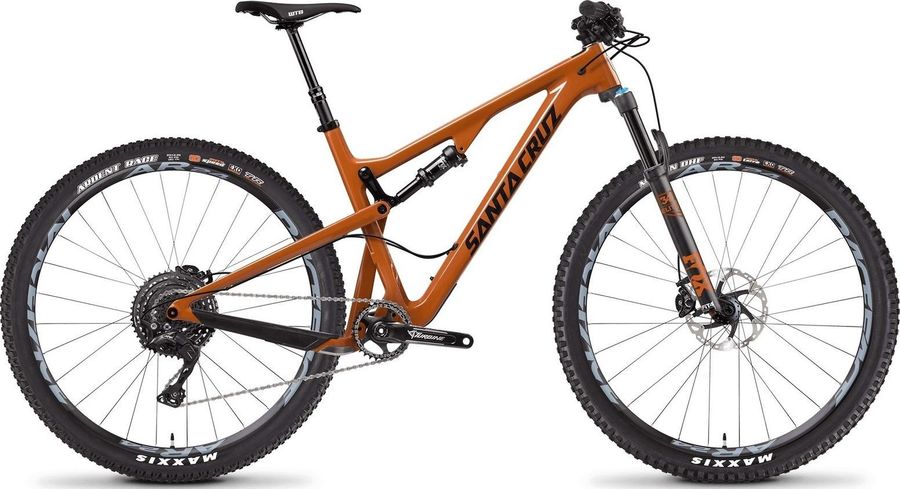

Santa Cruz Tallboy Carbon C XE 2018

About the Santa Cruz Tallboy Carbon C XE 2018

The Santa Cruz Tallboy Carbon C XE 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Santa Cruz Tallboy Carbon C XE 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Santa Cruz Palmdale lock-on
Components
Steam
Race Face Turbine, 50mm
Saddle
WTB Silverado Pro
Headset
Cane Creek 40, integrated
Seatpost
RockShox Reverb Stealth
Handlebar
Santa Cruz XC, 31.8mm diameter, 750 wide, flat
Brake lever
Shimano XT M8000
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Race Face Turbine
Shifter
Shimano XT M8000, 11 speed
Bottom bracket
threaded
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
E*thirteen TRS+
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Race Face AR 24, 32 hole
Tires
Front: Maxxis Minion DHF, 2.3", 3c EXO TR, Rear: Maxxis Ardent Race, 2.35" EXO TR
Spokes
DT Competition with Sapim secure lock silver nipples
Rear hub
Front: Novatec D641, 15mm x 110mm, 32 hole, Rear: Novatec D642, 12mm x 148mm, 32 hole
Front hub
Front: Novatec D641, 15mm x 110mm, 32 hole, Rear: Novatec D642, 12mm x 148mm, 32 hole

Geometry

Size SM MD LG XL XXL
a
Seat tube length
390,0
420,0
450,0
480,0
510,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
581,0
610,0
630,0
660,0
696,0
d
Head tube length
90,0
100,0
110,0
120,0
130,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1123,0
1152,0
1172,0
1202,0
1238,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
44,0
44,0
44,0
44,0
44,0
k
Stack height
601,0
610,0
610,0
624,0
638,0
l
Reach
412,0
437,0
457,0
482,0
512,0
m
Standover height
712,0
713,0
714,0
716,0
711,0
x
Bottom bracket height
330,0
330,0
330,0
330,0
330,0
y
Front center
-
-
-
-
-
